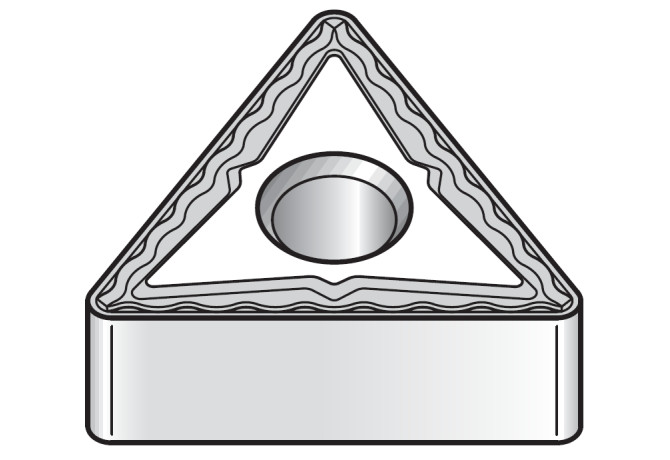

TNMG3309247N TN10P

Артикул: 4166543

В наличии

В корзину

Описание

Характеристики

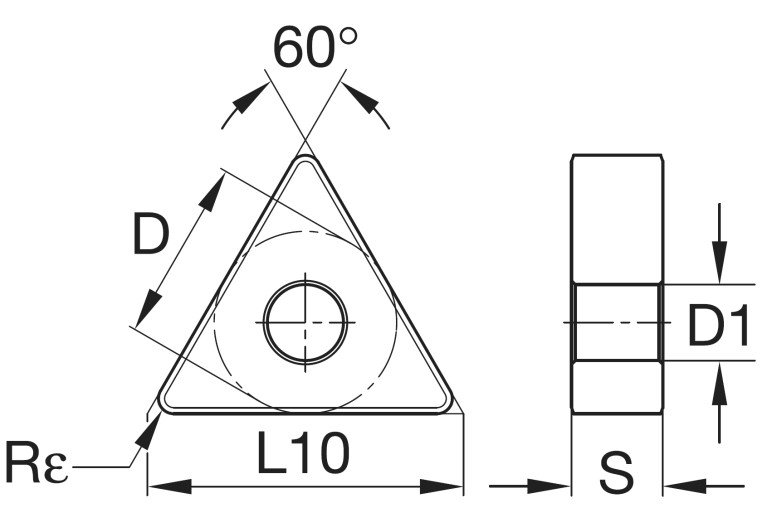

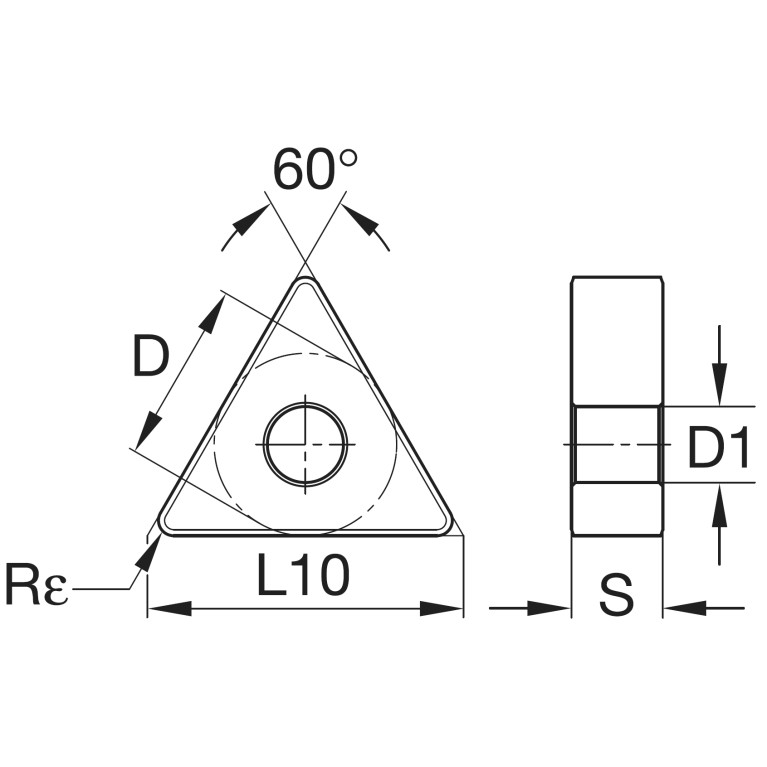

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

7.93 mm

Delivery state valid from

6/5/2012

DIN

TN3309242N

EPSR Insert included angle

60 Degree

FamilyProducts

indexable insert for turning, negative, TNMG-7N

GRDMFG Grade manufacturers designation

TN10P

IC Inscribed circle diameter

19.05 mm

ID Technical product number

4166543

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

33 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN3309242N

Materials

Name Identifying order number

TNMG3309247N TN10P

NameAnsi Identifying order number inch alternative

TNMG6667N TN10P

RE Corner radius

2.4 mm

S Insert thickness

9.53 mm

S1 Insert thickness total

9.53 mm

STDDES Standard designation

TNMG330924

STDDESAnsi Standard designation ANSI

TNMG666

TCINS Tolerance class insert

Working process

No working processes available
