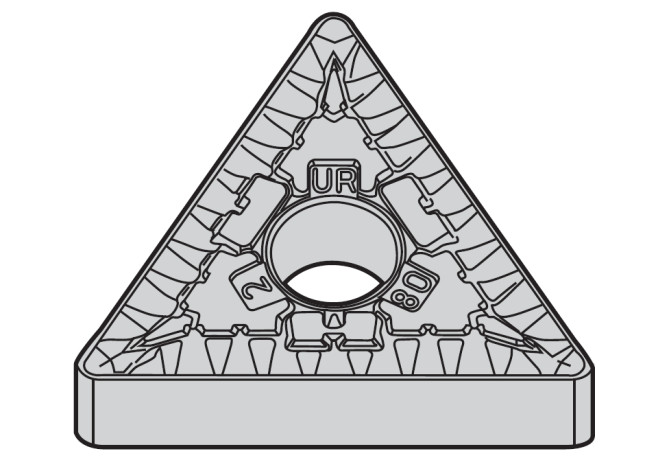

TNMG270612UR WM35CT

TNMG270612UR WM35CT TNMG270612UR WM35CT TNMG270612UR WM35CT

TNMG270612UR WM35CT

Widia
Артикул: TNMG270612UR WM35CT
В наличии
В корзину
Описание
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
2 - With chip breaker on both sides
CBMD Chip breaker manufacturers designation
UR
COMPC Company code
WI - Widia
CSP Coolant supply property
0 - Without coolant supply

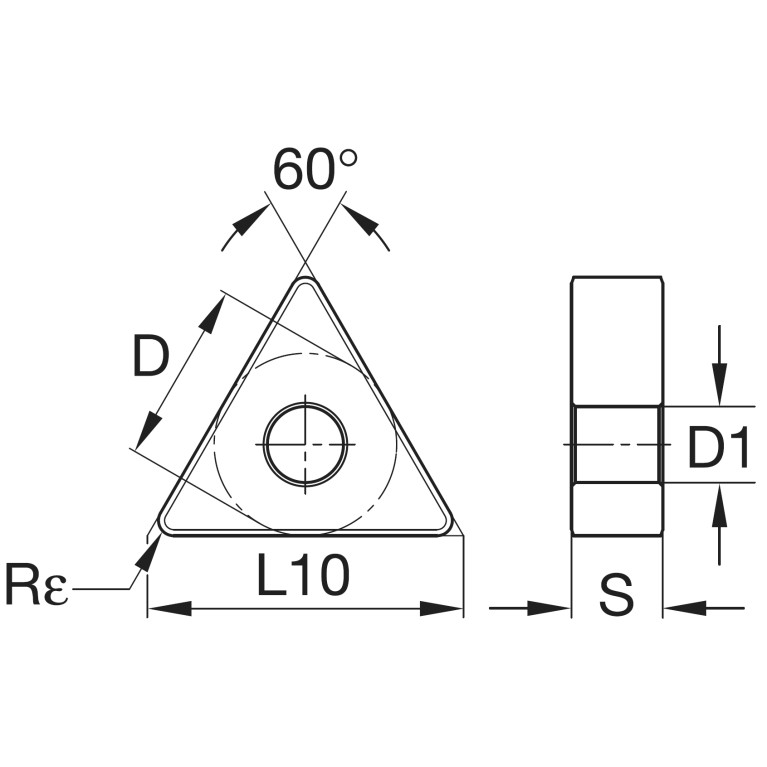

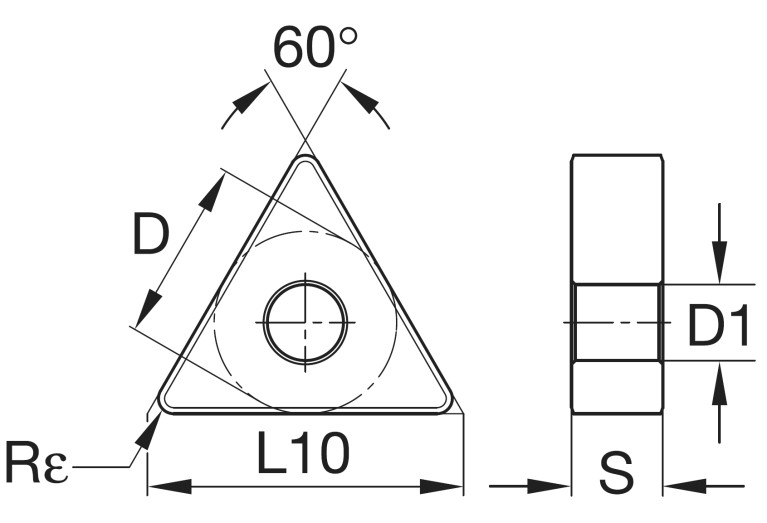

D1 Fixing hole diameter
6.35 mm
Delivery state valid from
6/5/2012
DIN
TN2706122N
EPSR Insert included angle
60 Degree
FamilyProducts
indexable insert for turning, negative, TNMG-UR
GRDMFG Grade manufacturers designation
WM35CT
IC Inscribed circle diameter
15.875 mm
ID Identifying order number
TNMG270612UR WM35CT
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-01 - Triangle insert
J22 Product name
4169506
L Cutting edge length
27.5 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TN2706122N
Materials
M
NameAnsi Product name inch alternative
TNMG543UR WM35CT
RE Corner radius
1.2 mm
S Insert thickness
6.35 mm
S1 Insert thickness total
6.35 mm
STDDES Standard designation
TNMG270612
STDDESAnsi Standard designation ANSI
TNMG543
TCINS Tolerance class insert
M
Working process
No working processes available
