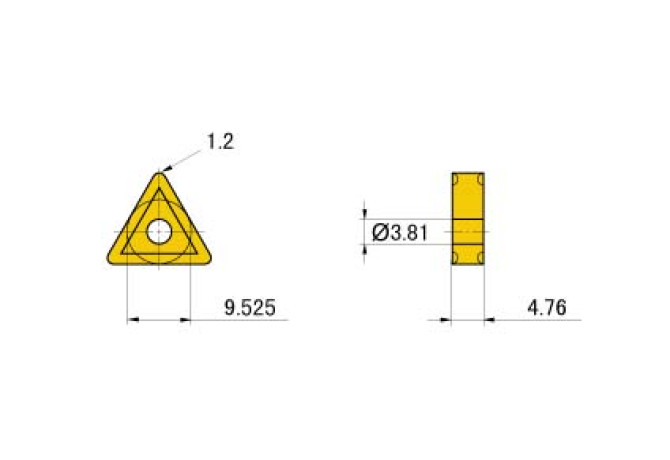

TNMG160412 HTi05T

Артикул: TNMG160412 HTi05T

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

BN Face land width

0.25 mm

CB Chip breaker face count

2 - With chip breaker on both sides

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

4/1/2022

DIN

TN1604122N

EPSR Insert included angle

60 Degree

FamilyProducts

insert for turning TNMG

GAN Insert rake angle

15 Degree

GB Face land angle

15 Degree

GRDMFG Grade manufacturers designation

HTi05T

GRDPRIO Standard designation of the grade main application

HW-K01

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.49 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1604122N

Materials

Name Identifying order number

TNMG160412 HTi05T

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TNMG160412

STDDESAnsi Standard designation ANSI

TNMG333

TCINS Tolerance class insert

Working process

BAB - Open by boring,DDA - External turning,DDI - Internal turning,DFA - External form turning
