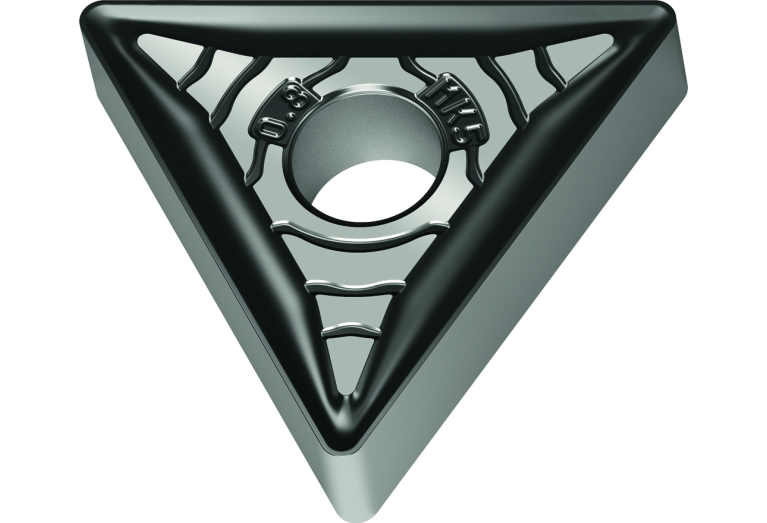

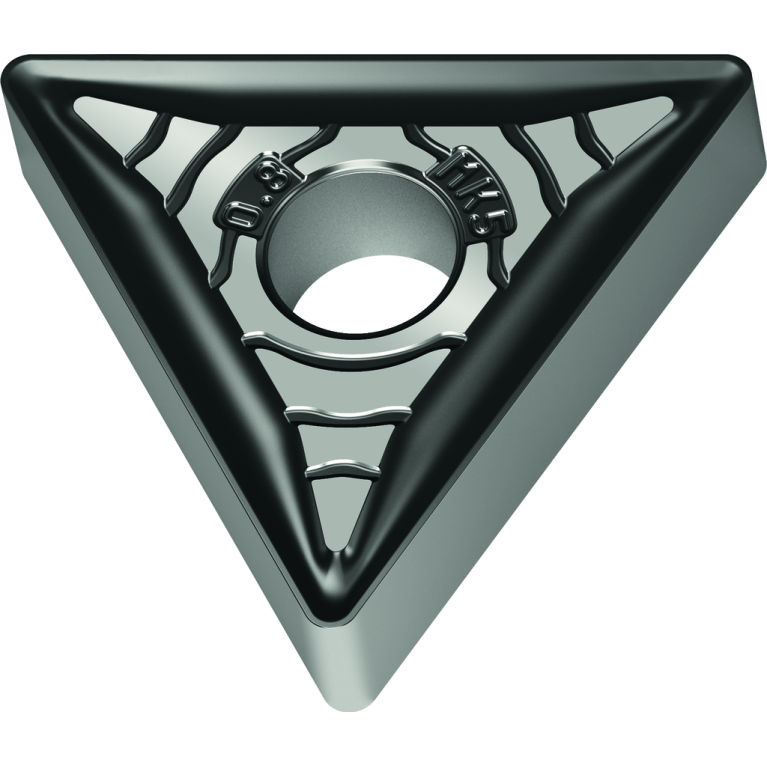

TNMG110308-MK5 WKK20S

TNMG110308-MK5 WKK20S TNMG110308-MK5 WKK20S TNMG110308-MK5 WKK20S TNMG110308-MK5 WKK20S

TNMG110308-MK5 WKK20S

Walter
Артикул: 6305149
В наличии
В корзину
Описание
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
MK5
CECC Cutting edge condition code
E - Rounded
COATN Coating / Покрытие
TiCN+Al2O3+(TiCN)
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
2.26 mm
Delivery state valid from
12/1/2023
DIN
TN1103082N

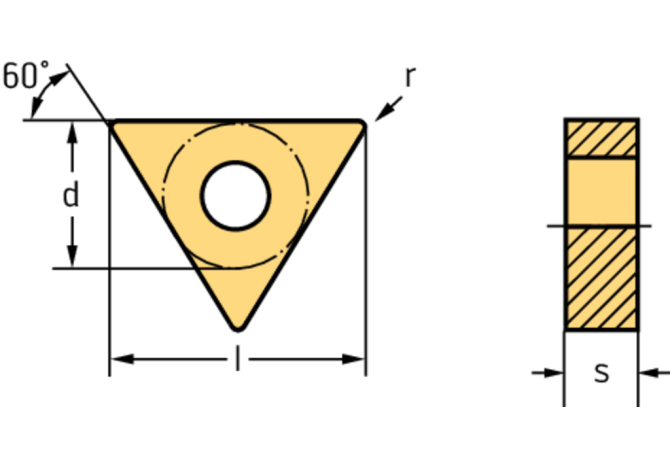

EPSR Insert included angle
60 Degree
FamilyProducts
Negative triangular 60° TNMG
GRDMFG Grade manufacturers designation
WKK20S
IC Inscribed circle diameter
6.35 mm
ID Technical product number
6305149
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$TN1103082NB$$08
ISYC Subclass
201-01 - Triangle insert
L Cutting edge length
10.999 mm
LOC-03 ISO
ISO$TN1103082NB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TN1103082N
MIID Master insert identification
TNMG110308 WKK20S
Name Identifying order number
TNMG110308-MK5 WKK20S
NameAnsi Identifying order number inch alternative
TNMG222-MK5 WKK20S
NOI Insert index count
3
RE Corner radius
0.8 mm
S Insert thickness
3.175 mm
S1 Insert thickness total
3.175 mm
STDDES Standard designation
TNMG110308
STDDESAnsi Standard designation ANSI
TNMG222
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.002 kg
