Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TNMG 160404-PP IC8350

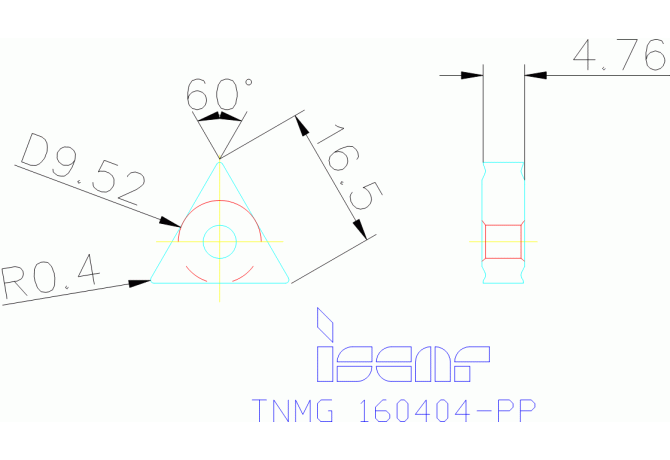

TNMG 160404-PP IC8350

Артикул: 5508556

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiN-TiCN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

TN1604042N

EPSR Insert included angle

60 Degree

FamilyProducts

TNMG 160404-PP IC8350

GAN Insert rake angle

13 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P20

GRD3RD Standard designation of the grade 3rd application

HC-M30

GRDMFG Grade manufacturers designation

IC8350

GRDPRIO Standard designation of the grade main application

HC-P45

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5508556

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1604042N

Materials

Name Identifying order number

TNMG 160404-PP IC8350

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TNMG160404

STDDESAnsi Standard designation ANSI

TNMG331

TCINS Tolerance class insert

Working process

No working processes available
