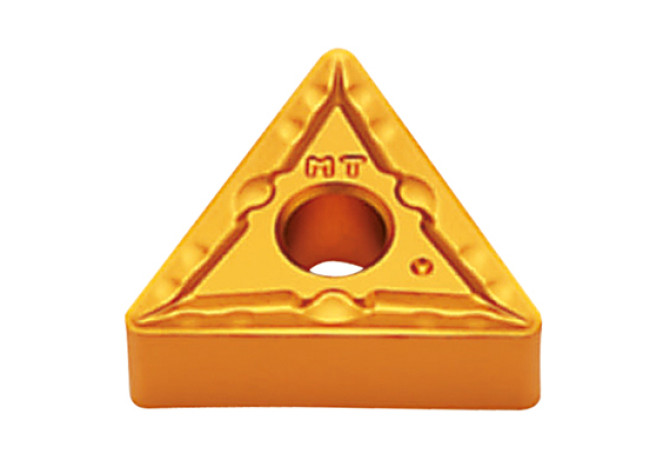

TNMG 110308 MT TT8125

Артикул: 5580276

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

TN1103082N

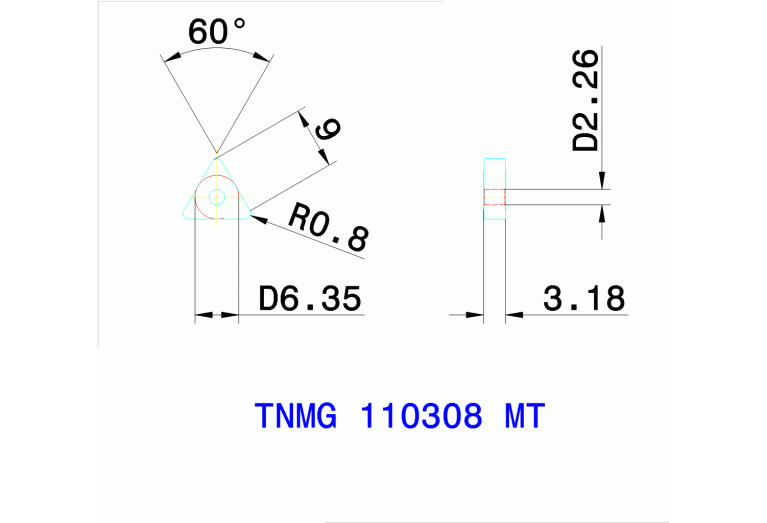

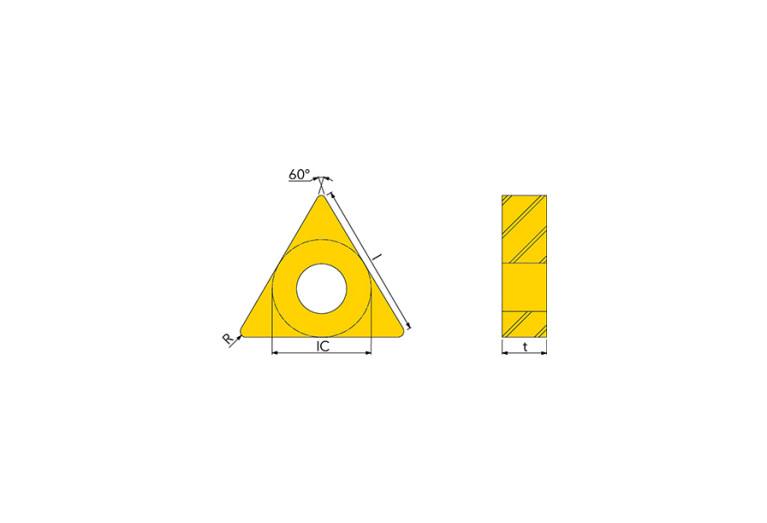

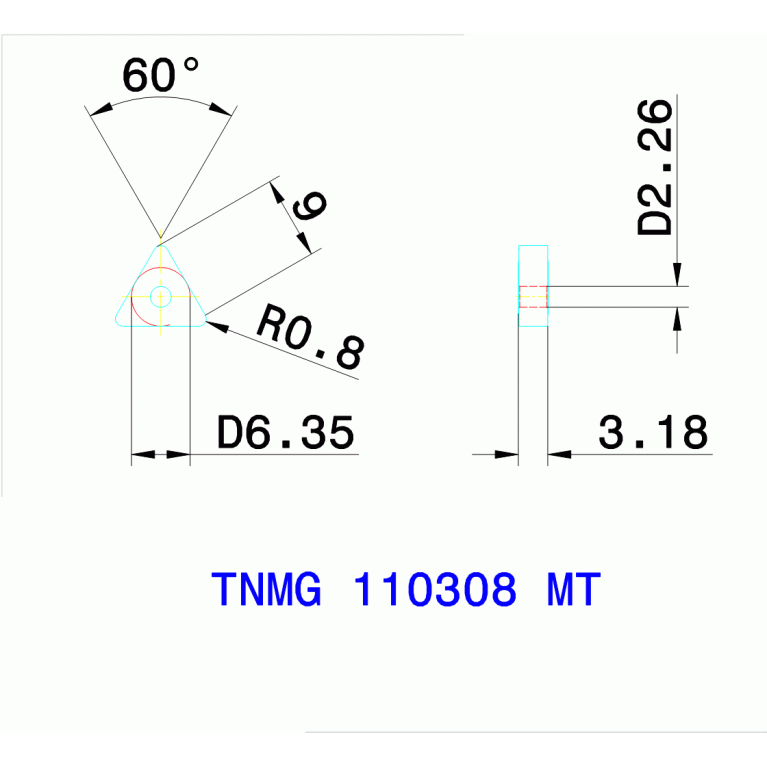

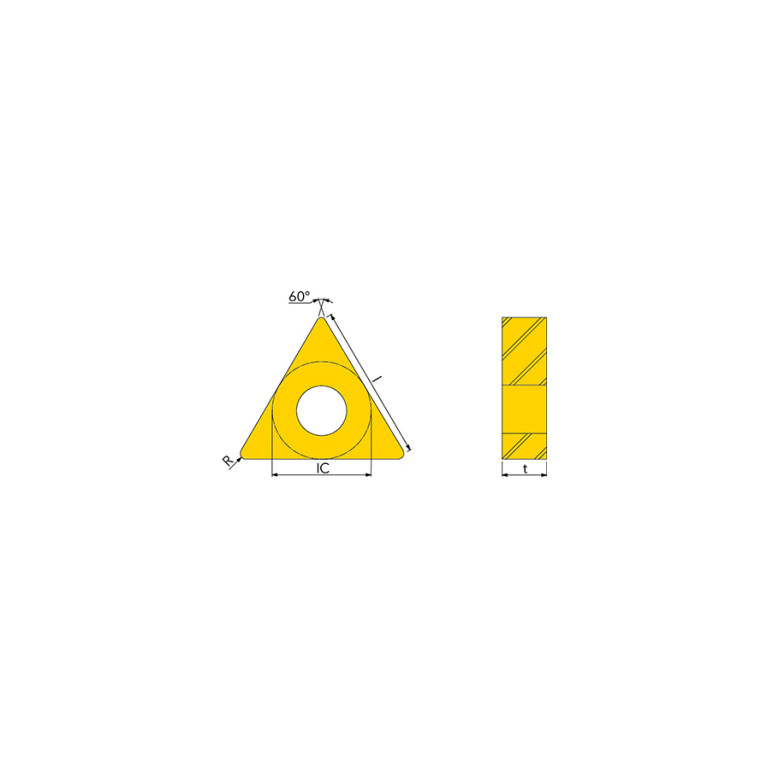

EPSR Insert included angle

60 Degree

FamilyProducts

insert, Negative 60° triangular inserts for medium roughing / tough rake angle

GRDMFG Grade manufacturers designation

TT8125

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5580276

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

9 mm

LE Cutting edge effective length

1.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1103082N

Name Identifying order number

TNMG 110308 MT TT8125

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TNMG110308

STDDESAnsi Standard designation ANSI

TNMG222

TCINS Tolerance class insert

Working process

No working processes available
