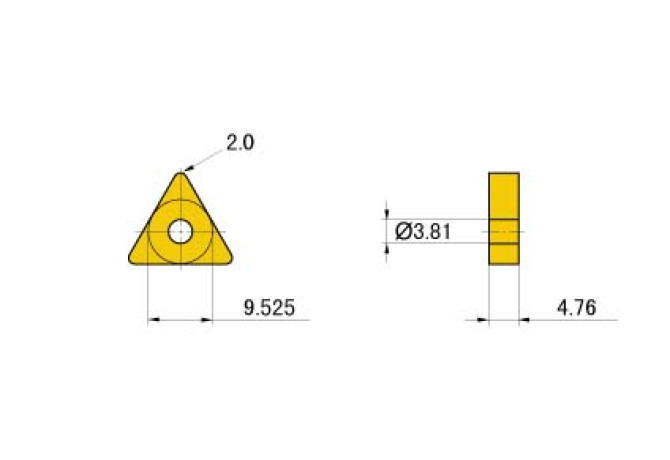

TNMA160420 UC5115

Артикул: TNMA160420 UC5115

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

4/1/2022

DIN

TN1604202N

EPSR Insert included angle

60 Degree

FamilyProducts

insert for turning TNMA

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

UC5115

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.49 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1604202N

Materials

Name Identifying order number

TNMA160420 UC5115

RE Corner radius

2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TNMA160420

STDDESAnsi Standard designation ANSI

TNMA335

TCINS Tolerance class insert

Working process

BAB - Open by boring,DDA - External turning,DDI - Internal turning,DFA - External form turning
