Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TNGP160404 TN10U

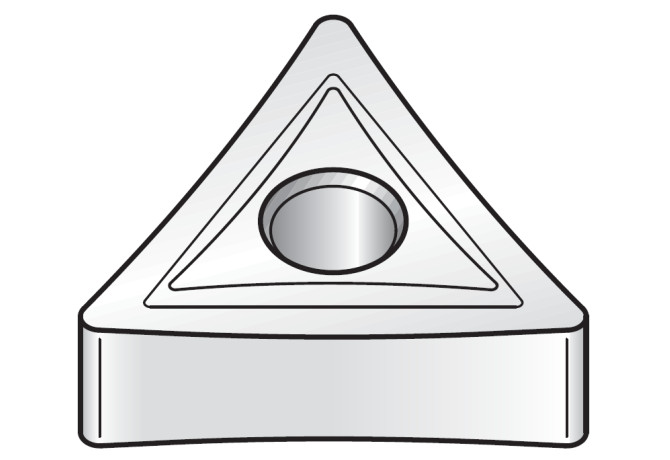

TNGP160404 TN10U

Артикул: 4164791

В наличии

В корзину

Описание

Характеристики

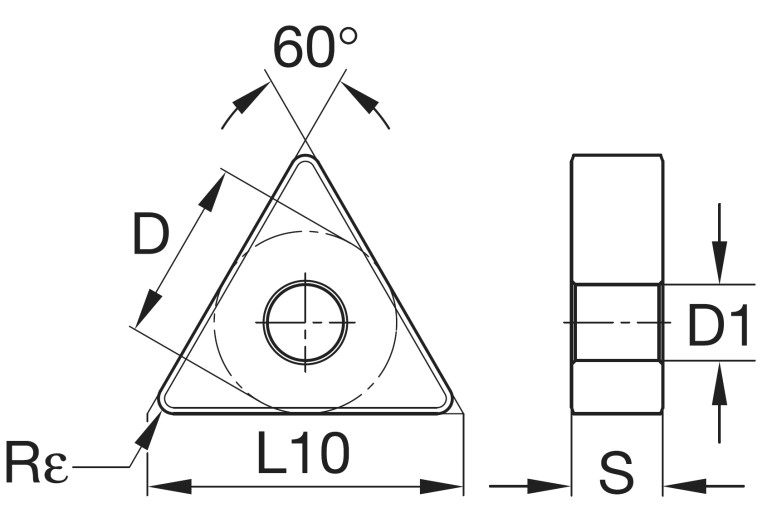

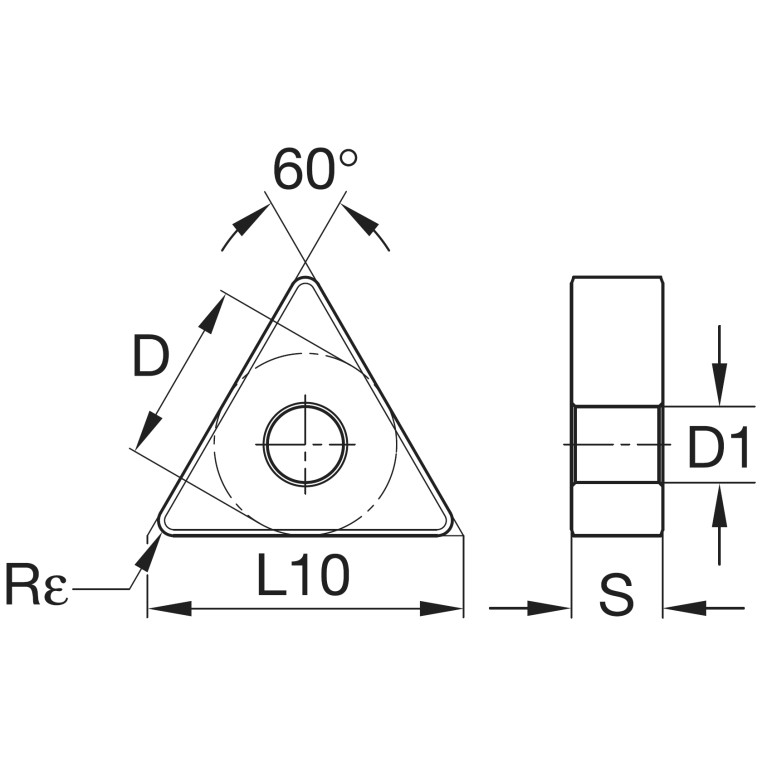

AN Clearance angle major

0 Degree

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

6/5/2012

DIN

TN1604042N

EPSR Insert included angle

60 Degree

FamilyProducts

indexable insert for turning, negative, TNGP

GRDMFG Grade manufacturers designation

TN10U

IC Inscribed circle diameter

9.53 mm

ID Technical product number

4164791

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1604042N

Materials

Name Identifying order number

TNGP160404 TN10U

NameAnsi Identifying order number inch alternative

TNGP331 TN10U

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TNGP160404

STDDESAnsi Standard designation ANSI

TNGP331

TCINS Tolerance class insert

Working process

No working processes available
