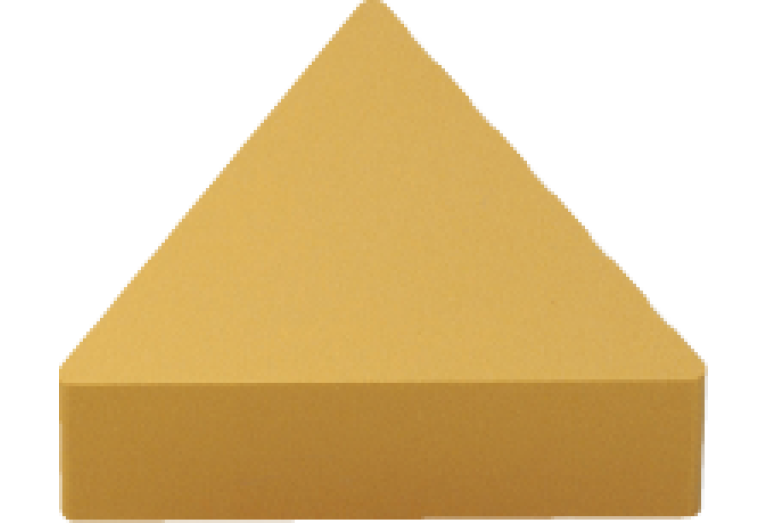

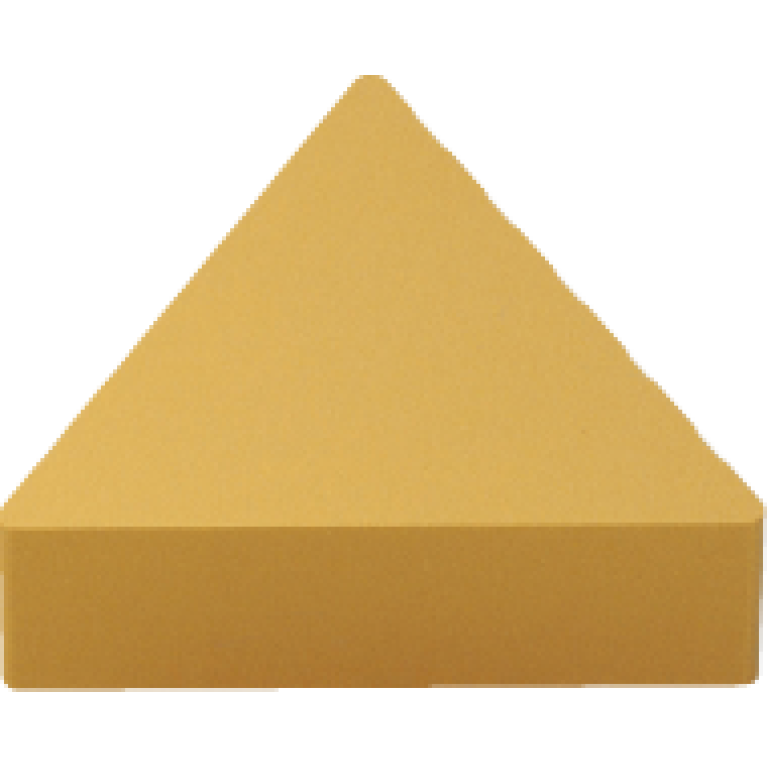

Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TNGN270630 NC9025

TNGN270630 NC9025

Артикул: 1-02-036799

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

TN2706 1N

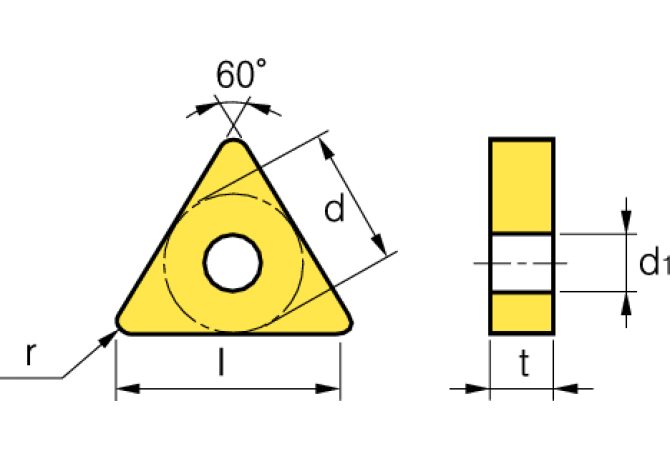

EPSR Insert included angle

60 Degree

FamilyProducts

Turning Insert (Negative)

GRDMFG Grade manufacturers designation

NC9025

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

15.875 mm

ID Technical product number

1-02-036799

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

27.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN2706 1N

Name Identifying order number

TNGN270630 NC9025

RE Corner radius

3 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

TNGN270630

TCINS Tolerance class insert

Working process

No working processes available
