TNGN110308 NX2525

Артикул: TNGN110308 NX2525

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

TN1103081N

EPSR Insert included angle

60 Degree

FamilyProducts

INSERT, TURNING, CERMET

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

CT-K10

GRD3RD Standard designation of the grade 3rd application

CT-K20

GRDMFG Grade manufacturers designation

NX2525

GRDPRIO Standard designation of the grade main application

CT-P20

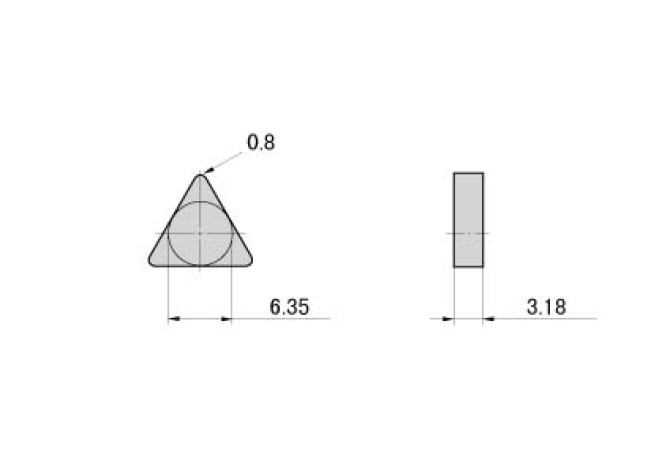

IC Inscribed circle diameter

6.35 mm

ID Technical product number

TNGN110308 NX2525

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1103081N

Materials

P,K

Name Identifying order number

TNGN110308 NX2525

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TNGN110308

STDDESAnsi Standard designation ANSI

TNGN222

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning

WT Weight of item

0.027 kg
