Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TNGG110304R UP20M

TNGG110304R UP20M

Артикул: TNGG110304R UP20M

В наличии

В корзину

Описание

Характеристики

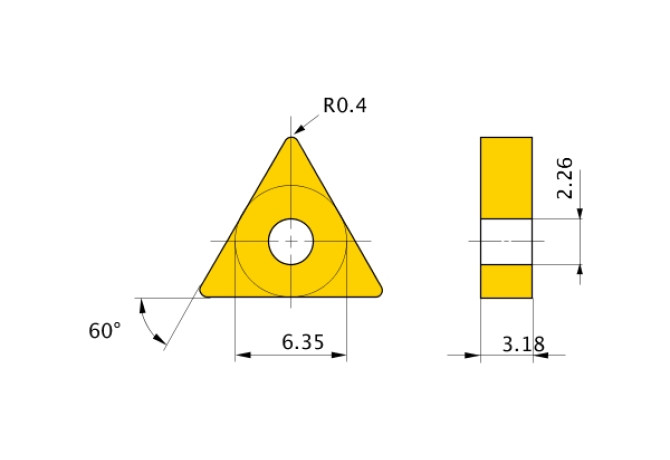

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiN-Verb.

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.26 mm

Delivery state valid from

4/1/2022

DIN

TN1103042R

EPSR Insert included angle

60 Degree

FamilyProducts

insert for turning TNGG-R

GAN Insert rake angle

14 Degree

GRD2ND Standard designation of the grade 2nd application

HC-M20-M30

GRDMFG Grade manufacturers designation

UP20M

GRDPRIO Standard designation of the grade main application

HC-P20-P30

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1103042R

Materials

Name Identifying order number

TNGG110304R UP20M

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TNGG110304R

STDDESAnsi Standard designation ANSI

TNGG221R

TCINS Tolerance class insert

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning
