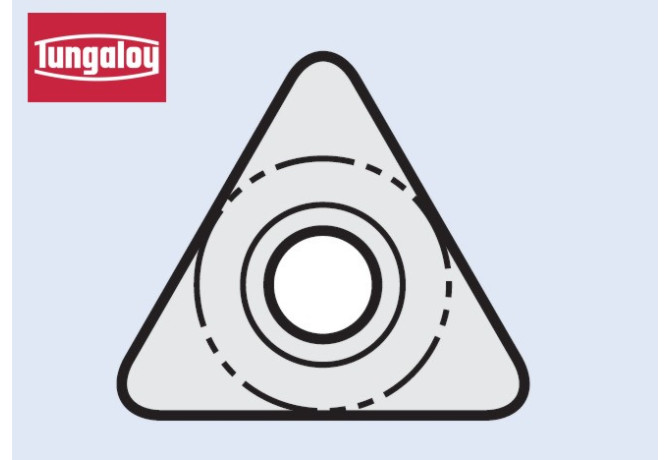

TNGA160404 GH110

Артикул: TNGA160404 GH110

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

PVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

9/27/2012

DIN

TN1604 2N

EPSR Insert included angle

60 Degree

FamilyProducts

ceramic insert, 60° triangular negative

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

GH110

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1604 2N

Name Identifying order number

TNGA160404 GH110

NameAnsi Identifying order number inch alternative

TNGA 331 GH110

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TNGA160404

STDDESAnsi Standard designation ANSI

TNGA331

TCINS Tolerance class insert

Working process

No working processes available
