TNGA160308 NX33

Артикул: TNGA160308 NX33

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

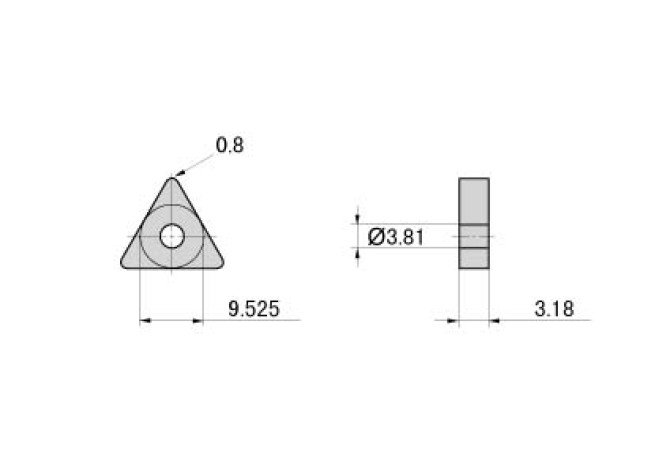

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

4/1/2022

DIN

TN1603082N

EPSR Insert included angle

60 Degree

FamilyProducts

INSERT, TURNING, CERMET

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

NX33

GRDPRIO Standard designation of the grade main application

CT-P01

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.49 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1603082N

Materials

Name Identifying order number

TNGA160308 NX33

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TNGA160308

STDDESAnsi Standard designation ANSI

TNGA322

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
