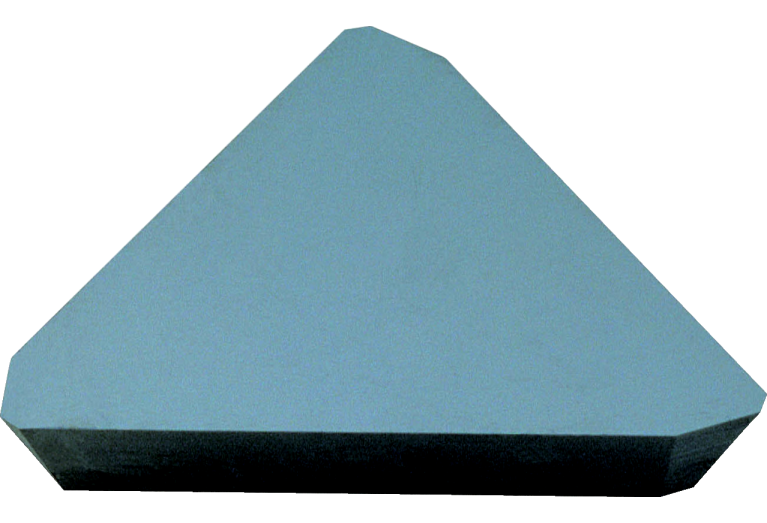

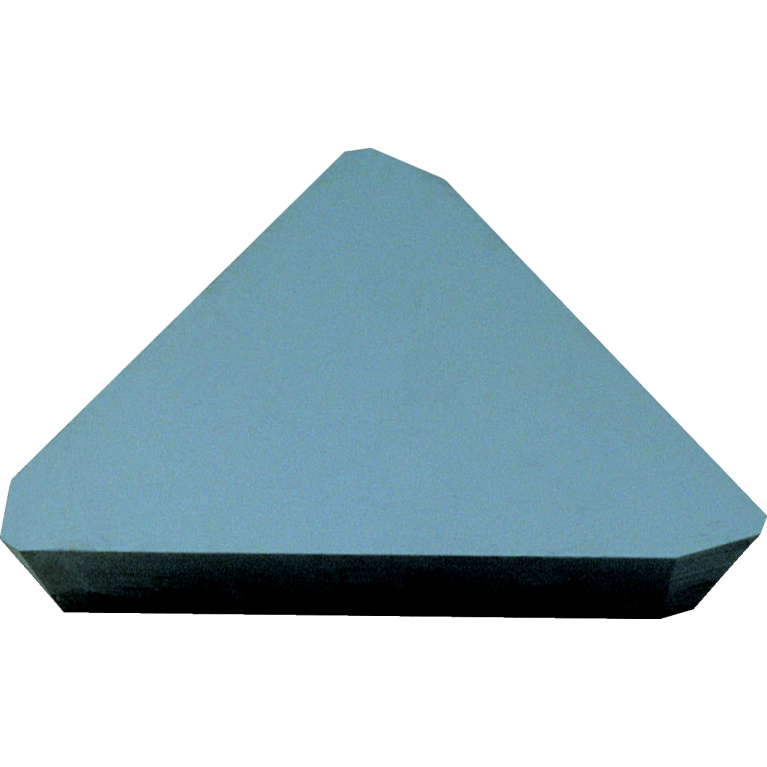

TFCN2203PFL H01

Артикул: 1-03-002505

В наличии

В корзину

Описание

Характеристики

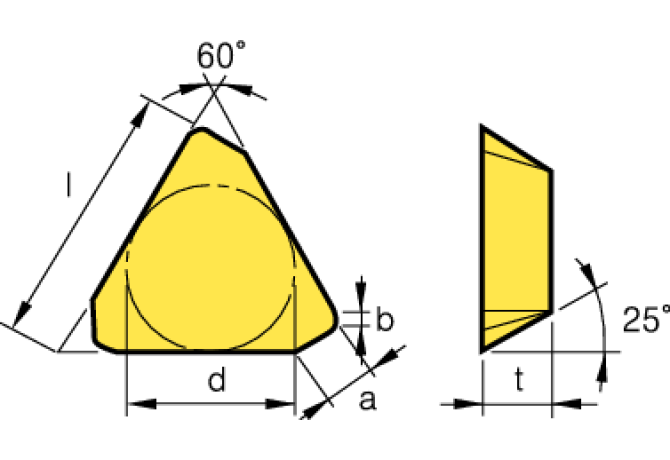

AN Clearance angle major

25 Degree

AS Clearance angle wiper edge

25 Degree

BS Wiper edge length

2.42 mm

CB Chip breaker face count

0 - Without chip breaker

CHW Corner chamfer width

0.71 mm

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

TF2203PF1L

EPSR Insert included angle

60 Degree

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

H01

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-03-002505

IFS Insert mounting style code

1 - Without bore

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

22 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TF2203PF1L

Name Identifying order number

TFCN2203PFL H01

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TFCN2203PFL

TCINS Tolerance class insert

Working process

F - Milling
