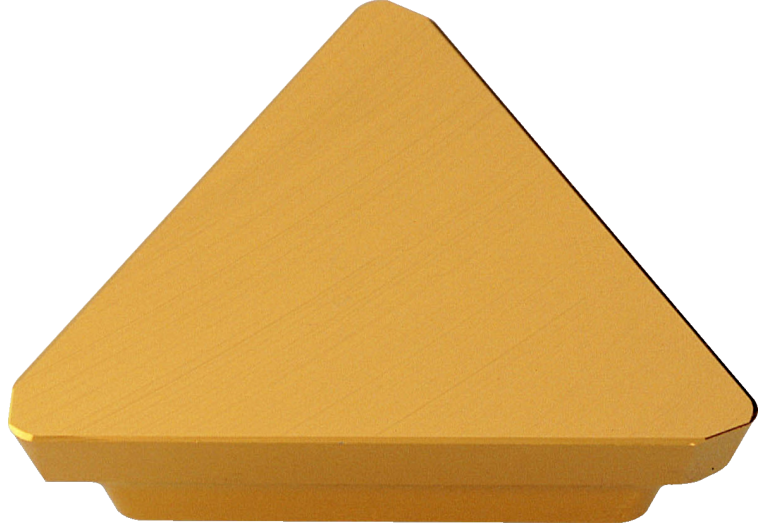

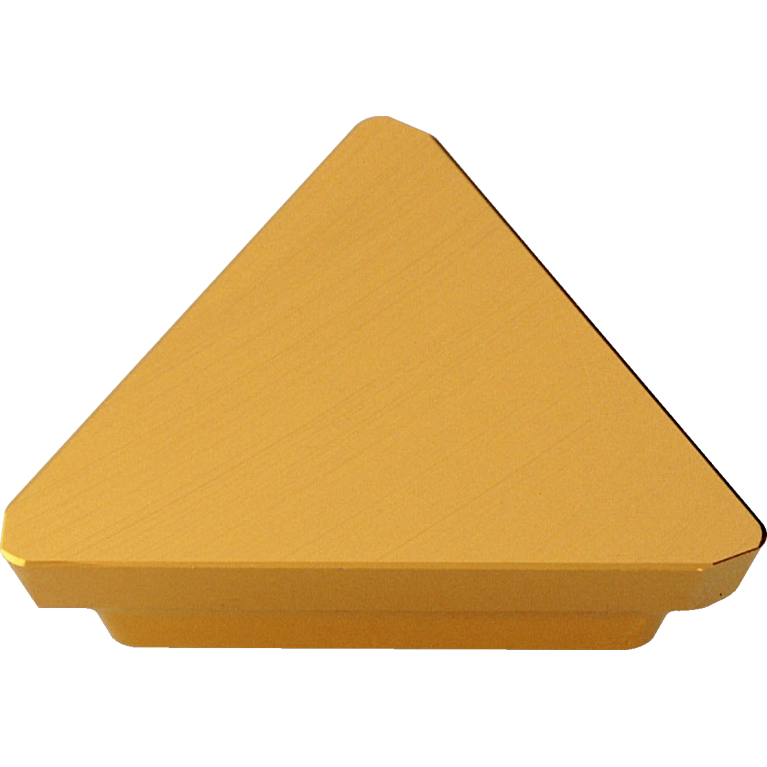

Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TEEN43TR CN2000

TEEN43TR CN2000

Артикул: 1-03-016851

В наличии

В корзину

Описание

Характеристики

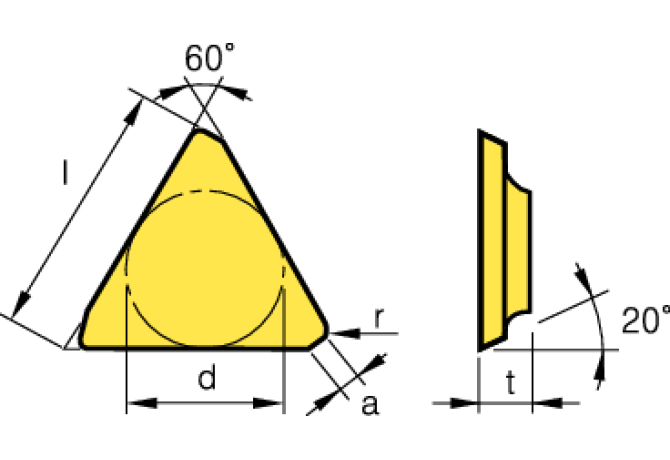

AN Clearance angle major

20 Degree

BS Wiper edge length

1.5 mm

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

TEEN43R

EPSR Insert included angle

60 Degree

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

CN2000

GRDPRIO Standard designation of the grade main application

Cermet

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-03-016851

IFS Insert mounting style code

1 - Without bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

22 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TEEN43R

Name Identifying order number

TEEN43TR CN2000

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDESAnsi Standard designation ANSI

TEEN43TR

TCINS Tolerance class insert

Working process

F - Milling
