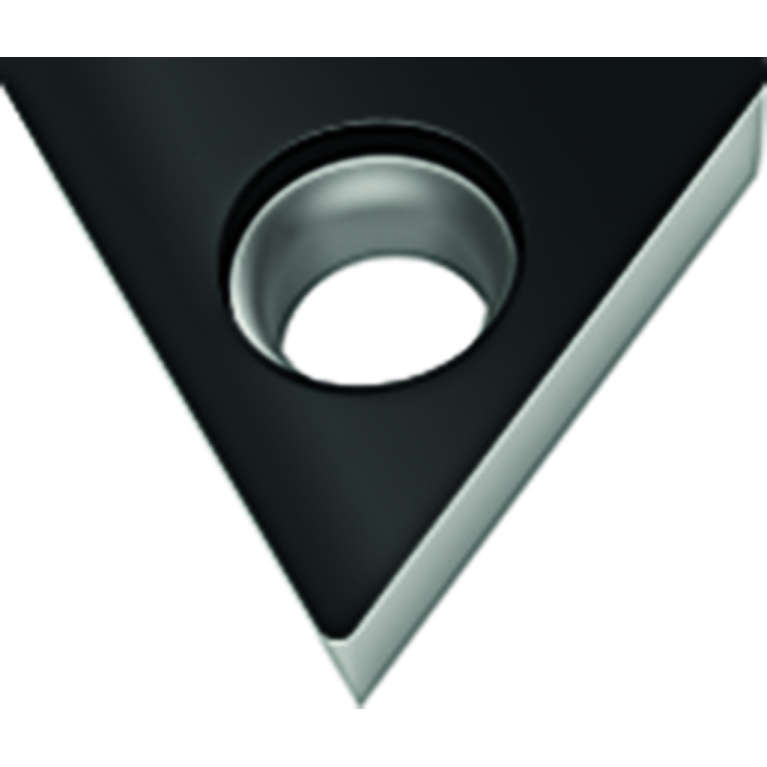

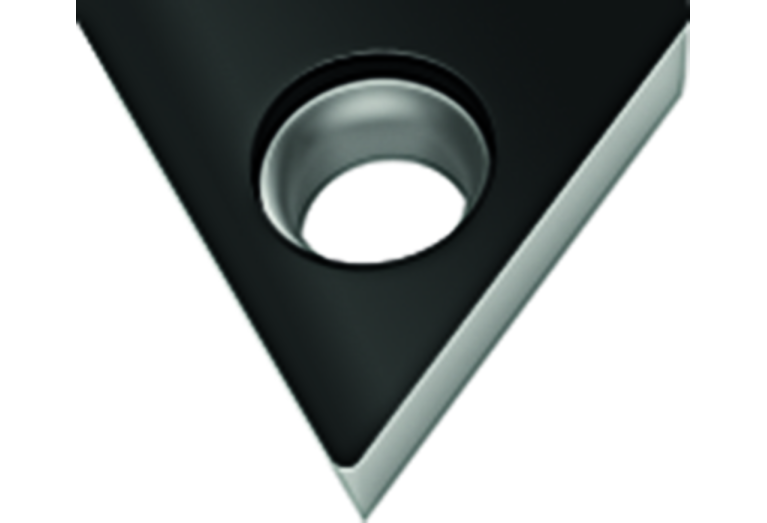

TCMW16T308-RK6 WKK10S

TCMW16T308-RK6 WKK10S TCMW16T308-RK6 WKK10S TCMW16T308-RK6 WKK10S

TCMW16T308-RK6 WKK10S

Walter
Артикул: 6651595
В наличии
В корзину
Описание
Характеристики
AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
RK6
CECC Cutting edge condition code
E - Rounded
COATN Coating / Покрытие
TiCN+Al2O3+(TiCN)
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
12/1/2023
DIN
TC16T3083N

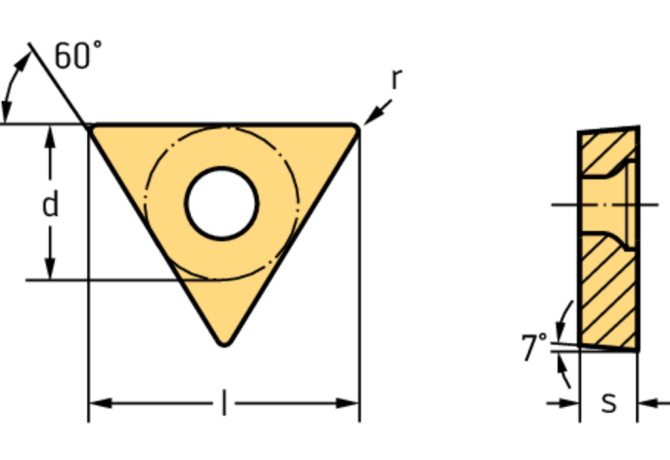

EPSR Insert included angle
60 Degree
FamilyProducts
Positive triangular 60° TCMW
GRDMFG Grade manufacturers designation
WKK10S
IC Inscribed circle diameter
9.525 mm
ID Technical product number
6651595
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$TC16T3083NB$$08
ISYC Subclass
201-01 - Triangle insert
L Cutting edge length
16.498 mm
LOC-03 ISO
ISO$TC16T3083NB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TC16T3083N
MIID Master insert identification
TCMW16T308 WKK10S
Name Identifying order number
TCMW16T308-RK6 WKK10S
NameAnsi Identifying order number inch alternative
TCMW3(2.5)2-RK6 WKK10S
NOI Insert index count
3
RE Corner radius
0.8 mm
S Insert thickness
3.969 mm
S1 Insert thickness total
3.969 mm
STDDES Standard designation
TCMW16T308
STDDESAnsi Standard designation ANSI
TCMW32.52
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.005 kg
