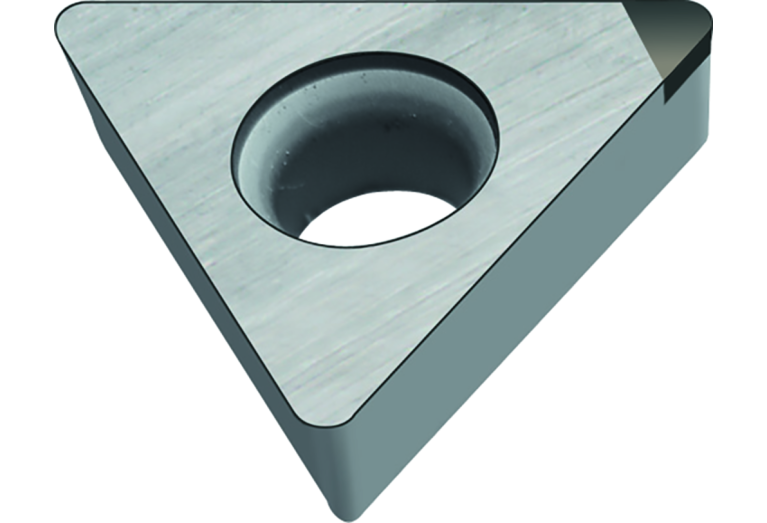

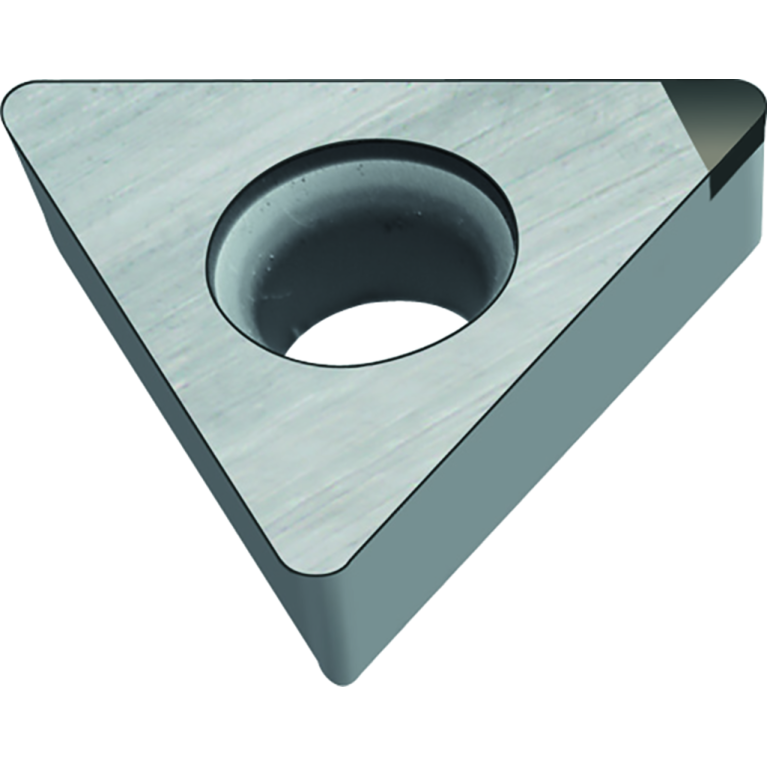

TCMW110204 WCB50

Артикул: 5017048

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

..MA

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

12/1/2023

DIN

TC1102043N

EPSR Insert included angle

60 Degree

FamilyProducts

CBN – Positive triangular 60° TCMW

GRDMFG Grade manufacturers designation

WCB50

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5017048

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$TC1102043NB$$04

ISYC Subclass

201-01 - Triangle insert

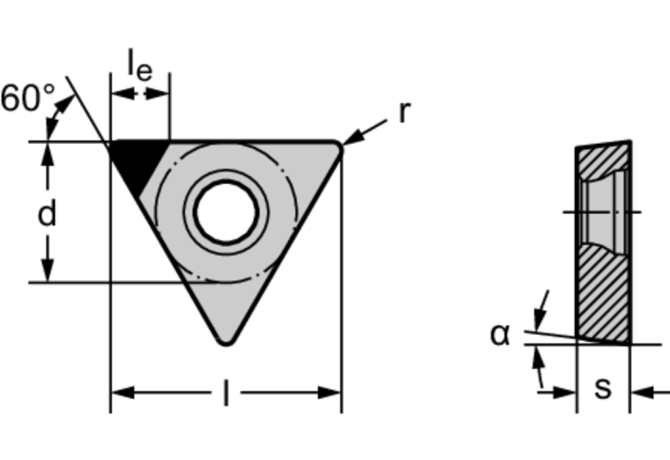

L Cutting edge length

10.999 mm

LE Cutting edge effective length

2.4 mm

LOC-03 ISO

ISO$TC1102043NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC1102043N

MIID Master insert identification

TCMW110204 WCB50

Name Identifying order number

TCMW110204 WCB50

NameAnsi Identifying order number inch alternative

TCMW2(1.5)1 WCB50

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

2.38125 mm

S1 Insert thickness total

2.38125 mm

STDDES Standard designation

TCMW110204

STDDESAnsi Standard designation ANSI

TCMW21.51

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.007 kg
