Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TCMW 16T308 IC20

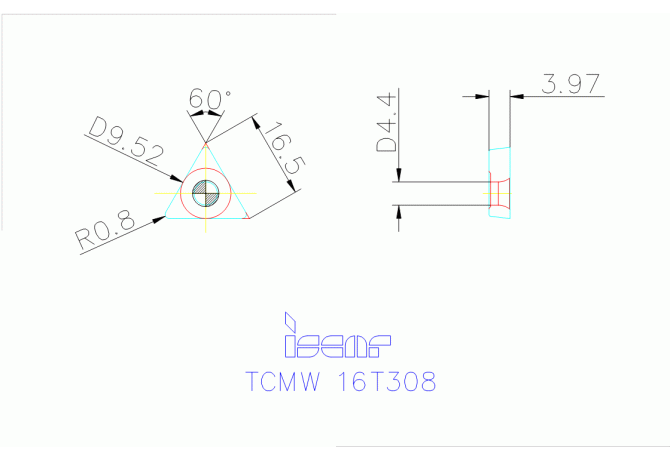

TCMW 16T308 IC20

Артикул: 5501324

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

2/1/2012

DIN

TC16T3083N

EPSR Insert included angle

60 Degree

FamilyProducts

TCMW 16T308 IC20

GRDMFG Grade manufacturers designation

IC20

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5501324

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3083N

Name Identifying order number

TCMW 16T308 IC20

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TCMW16T308

STDDESAnsi Standard designation ANSI

TCMW32.52

TCINS Tolerance class insert

Working process

No working processes available
