TCMT16T304 TN5120

Артикул: 122226582

В наличии

В корзину

Описание

Характеристики

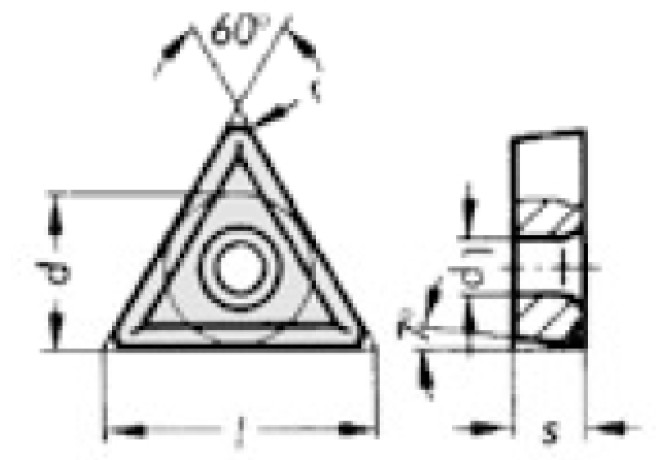

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

6/16/2013

DIN

TC16T3043N

EPSR Insert included angle

60 Degree

FamilyProducts

indexable insert TCM, single sided

GRDMFG Grade manufacturers designation

TN5120

IC Inscribed circle diameter

9.52 mm

ID Technical product number

122226582

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.498 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3043N

Materials

Name Identifying order number

TCMT16T304 TN5120

NameAnsi Identifying order number inch alternative

TCMT3251 TN5120

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TCMT16T304

STDDESAnsi Standard designation ANSI

TCMT3251

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
