TCMT130302 NX3035

Артикул: TCMT130302 NX3035

В наличии

В корзину

Описание

Характеристики

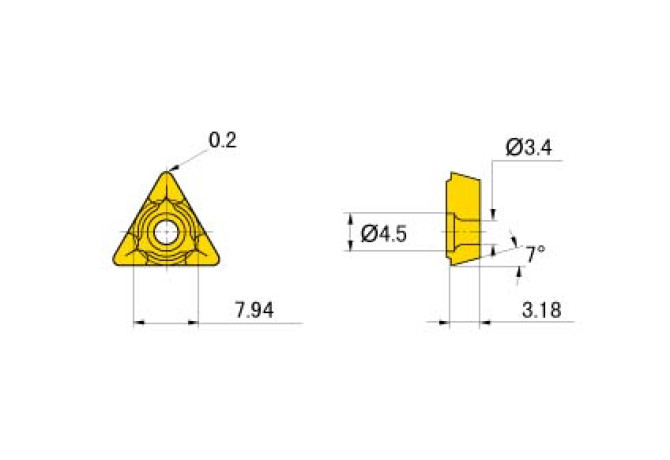

AN Clearance angle major

7 Degree

AS Clearance angle wiper edge

0 Degree

BN Face land width

0.1 mm

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.4 mm

Delivery state valid from

4/1/2022

DIN

TC1303023N

EPSR Insert included angle

60 Degree

FamilyProducts

insert for turning TCMT

GAN Insert rake angle

18 Degree

GB Face land angle

18 Degree

GRD2ND Standard designation of the grade 2nd application

CT-P20

GRD3RD Standard designation of the grade 3rd application

CT-P30

GRDMFG Grade manufacturers designation

NX3035

GRDPRIO Standard designation of the grade main application

CT-P10

IC Inscribed circle diameter

7.94 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

13.75 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC1303023N

Materials

Name Identifying order number

TCMT130302 NX3035

RE Corner radius

0.2 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TCMT130302

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
