TCMT110208 UE6020

Артикул: TCMT110208 UE6020

В наличии

В корзину

Описание

Характеристики

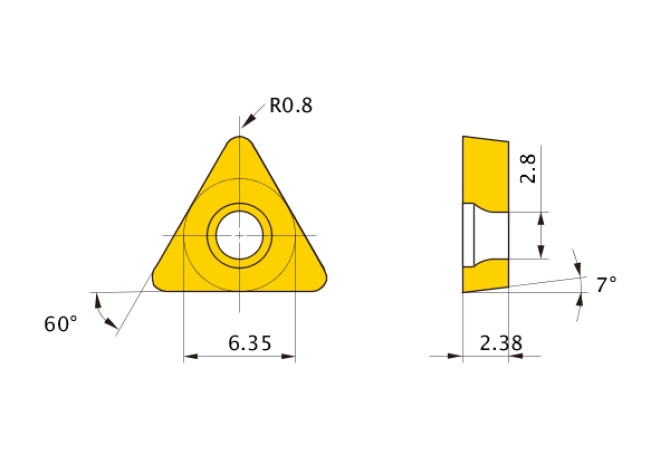

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

TiCN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

4/1/2022

DIN

TC1102083N

EPSR Insert included angle

60 Degree

FamilyProducts

insert for turning TCMT

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRDMFG Grade manufacturers designation

UE6020

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

6.35 mm

ID Technical product number

TCMT110208 UE6020

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC1102083N

Materials

Name Identifying order number

TCMT110208 UE6020

RE Corner radius

0.8 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TCMT110208

STDDESAnsi Standard designation ANSI

TCMT21.52

TCINS Tolerance class insert

Working process

DDI - Internal turning

WT Weight of item

0.028 kg
