Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TCMT110202 UP35N

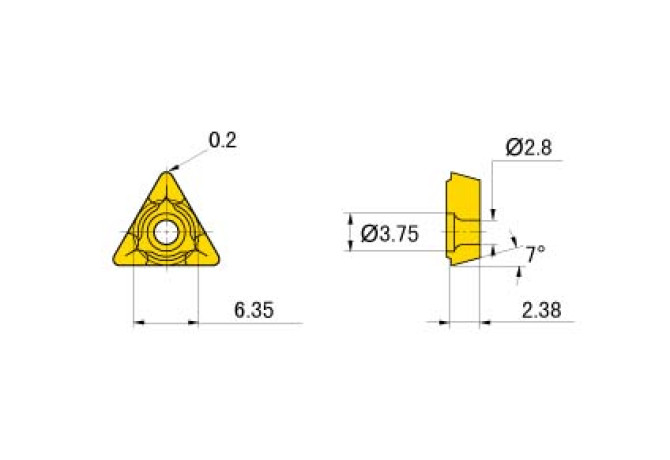

TCMT110202 UP35N

Артикул: TCMT110202 UP35N

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

AS Clearance angle wiper edge

0 Degree

BN Face land width

0.1 mm

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

(Ti, Al)N

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

4/1/2022

DIN

TC1102023N

EPSR Insert included angle

60 Degree

FamilyProducts

INSERT, TURNING, COATED CERMET

GAN Insert rake angle

18 Degree

GB Face land angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

CC-P20

GRDMFG Grade manufacturers designation

UP35N

GRDPRIO Standard designation of the grade main application

CC-P10

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC1102023N

Materials

Name Identifying order number

TCMT110202 UP35N

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TCMT110202

TCINS Tolerance class insert

Working process

BAB - Open by boring,DDA - External turning,DDI - Internal turning
