Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TCMT 16T312 FM TT5080

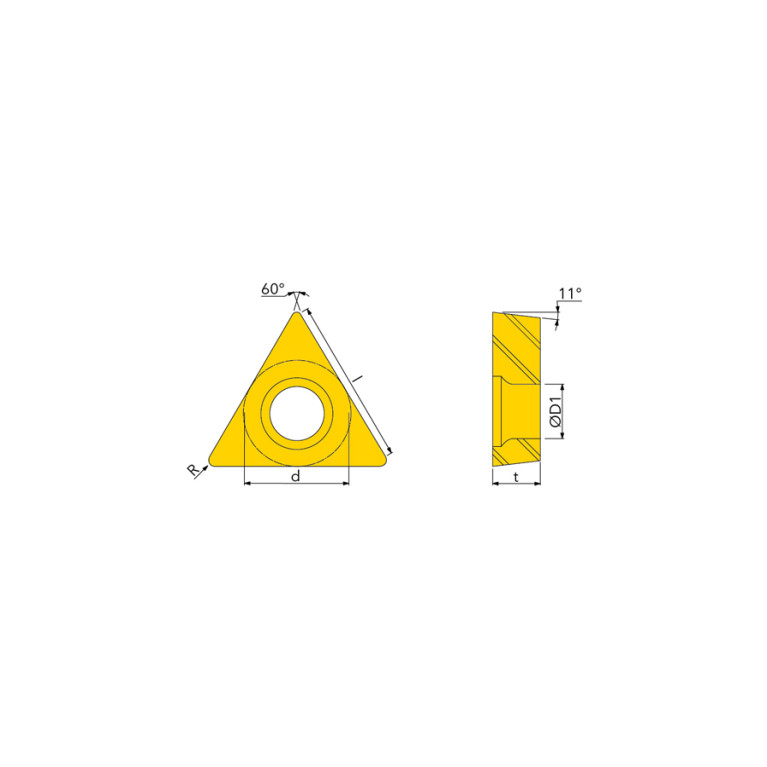

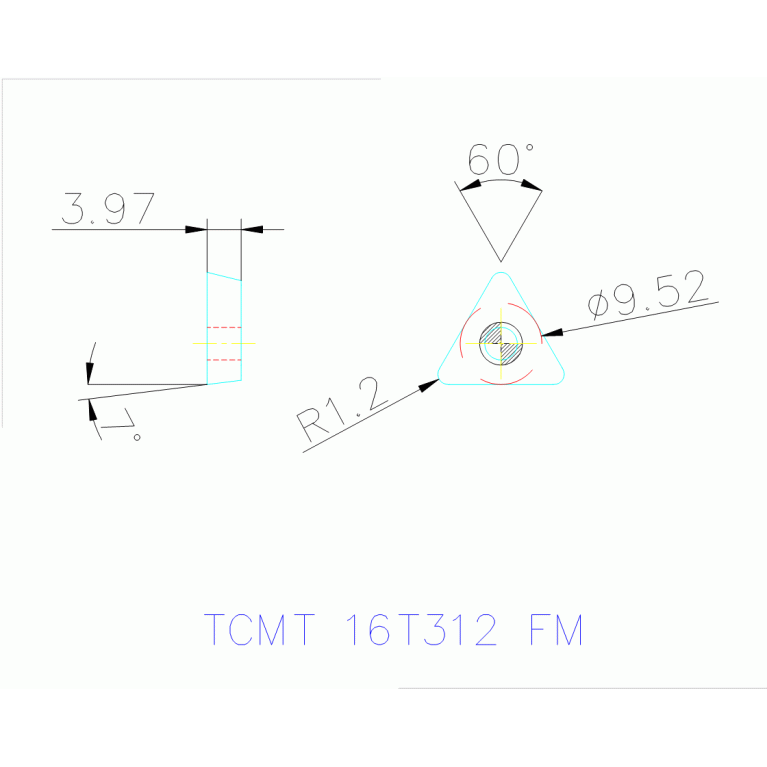

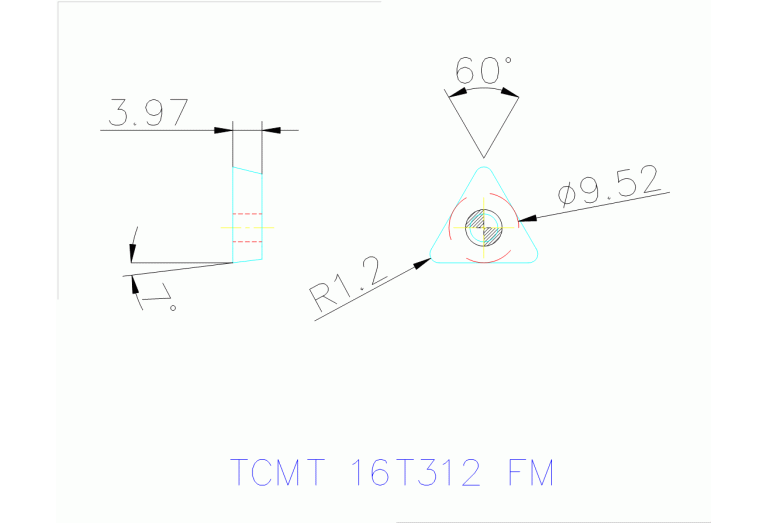

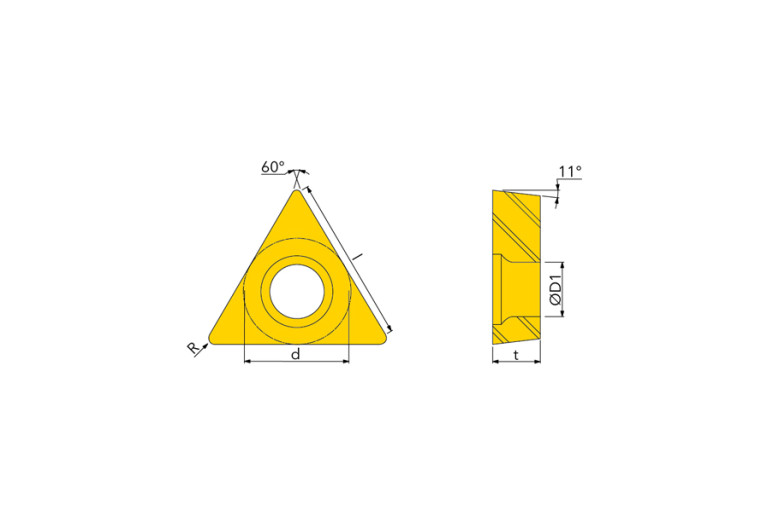

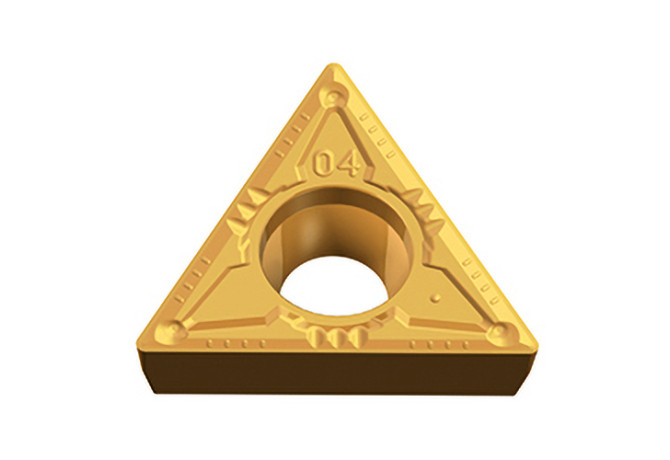

TCMT 16T312 FM TT5080

Артикул: 6155773

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiAlN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

NL - Discontinued

DIN

TC16T3123N

EPSR Insert included angle

60 Degree

FamilyProducts

insert, Positive 7° clearance triangular inserts for semi finishing and medium machining

GRD2ND Standard designation of the grade 2nd application

M05-M25

GRD3RD Standard designation of the grade 3rd application

S05-S25

GRDMFG Grade manufacturers designation

TT5080

IC Inscribed circle diameter

9.52 mm

ID Technical product number

6155773

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

13.5 mm

LE Cutting edge effective length

1.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3123N

MIID Master insert identification

TCMT16T312 TT5080

Name Identifying order number

TCMT 16T312 FM TT5080

RE Corner radius

1.2 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TCMT16T312

STDDESAnsi Standard designation ANSI

TCMT32.53

TCINS Tolerance class insert

Working process

No working processes available
