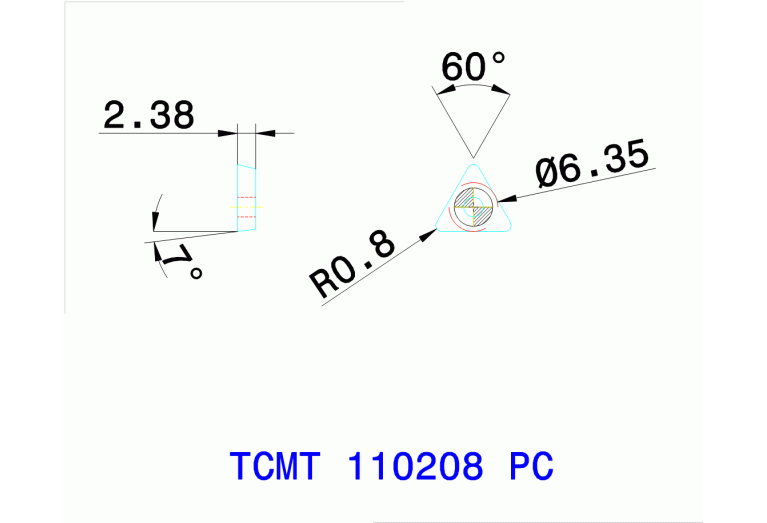

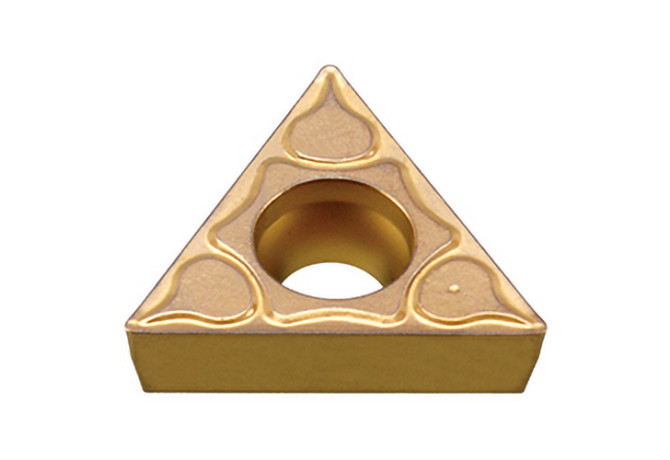

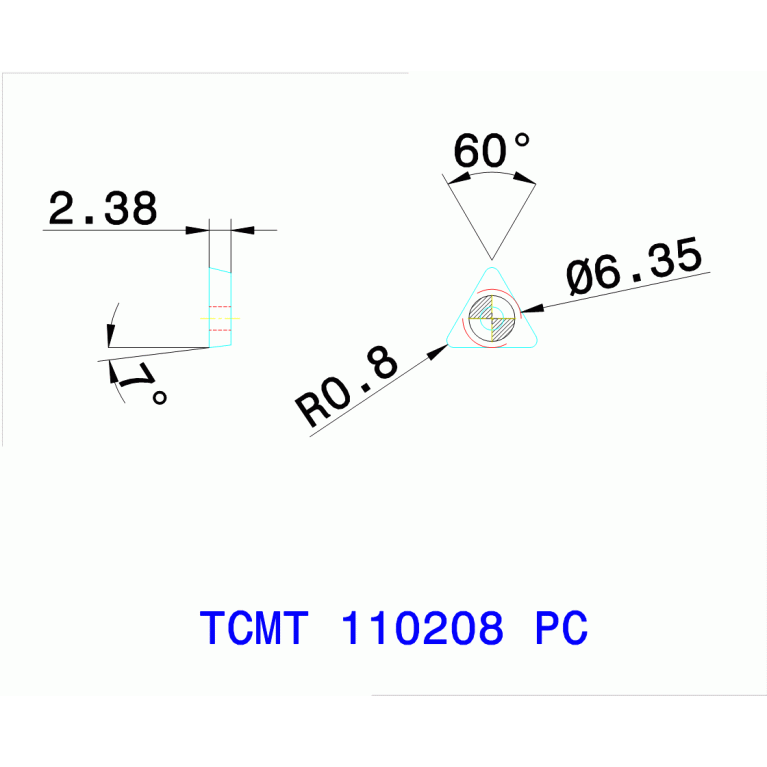

TCMT 110208 PC TT9080
TCMT 110208 PC TT9080
Артикул:
5522870
В наличии
Характеристики
AN Clearance angle major
7 Degree
CB Chip breaker face count
0 - Without chip breaker
COATN Coating / Покрытие
TiAlN+TiN
COMPC Company code
IL - Ingersoll
D1 Fixing hole diameter
2.8 mm
Delivery state
LL - Stock limited
DIN
TC1102083N
EPSR Insert included angle
60 Degree
FamilyProducts
insert, Positive 60° Insert - 7° clearance for medium roughing / steel
GRD2ND Standard designation of the grade 2nd application
M20-M40
GRD3RD Standard designation of the grade 3rd application
S20-S40
GRDMFG Grade manufacturers designation
TT9080
GRDPRIO Standard designation of the grade main application
P20-P40
IC Inscribed circle diameter
6.35 mm
ID Technical product number
5522870
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
1
ISYC Subclass
201-01 - Triangle insert
L Cutting edge length
9 mm
LE Cutting edge effective length
1.4 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TC1102083N
MIID Master insert identification
TCMT110208 TT9080
Name Identifying order number
TCMT 110208 PC TT9080
RE Corner radius
0.8 mm
S Insert thickness
2.38 mm
S1 Insert thickness total
2.38 mm
STDDES Standard designation
TCMT110208
STDDESAnsi Standard designation ANSI
TCMT21.52
TCINS Tolerance class insert
M
Working process
No working processes available
