Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TCMT 090202 FM TT8020

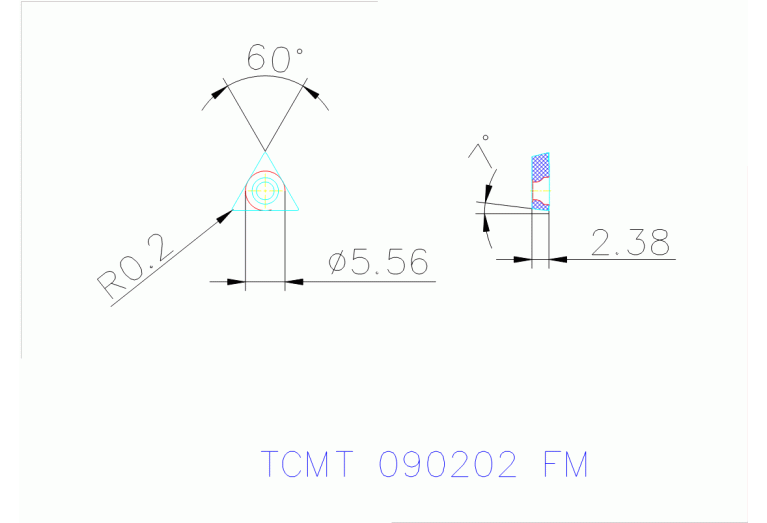

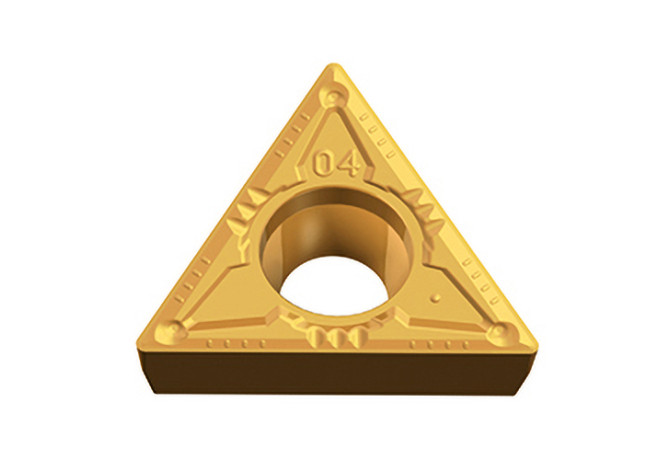

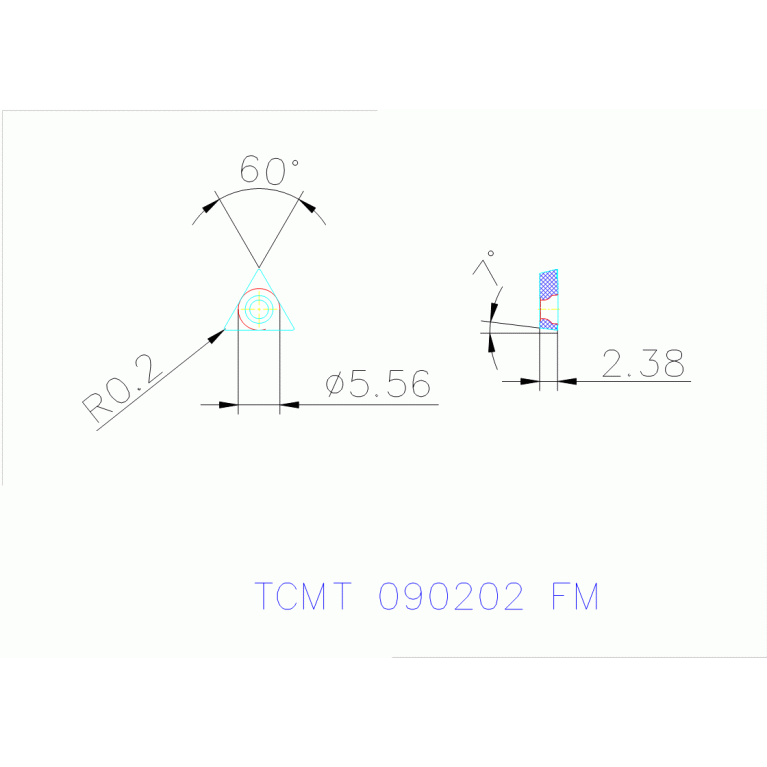

TCMT 090202 FM TT8020

Артикул: 6155738

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

2.5 mm

Delivery state

LL - Stock limited

DIN

TC0902023N

EPSR Insert included angle

60 Degree

FamilyProducts

insert, Positive 7° clearance triangular inserts for semi finishing and medium machining

GRD2ND Standard designation of the grade 2nd application

M30-M50

GRD3RD Standard designation of the grade 3rd application

S30-S50

GRDMFG Grade manufacturers designation

TT8020

GRDPRIO Standard designation of the grade main application

P30-P50

IC Inscribed circle diameter

5.56 mm

ID Technical product number

6155738

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

9.1 mm

LE Cutting edge effective length

1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC0902023N

MIID Master insert identification

TCMT090202 TT8020

Name Identifying order number

TCMT 090202 FM TT8020

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TCMT090202

TCINS Tolerance class insert

Working process

No working processes available
