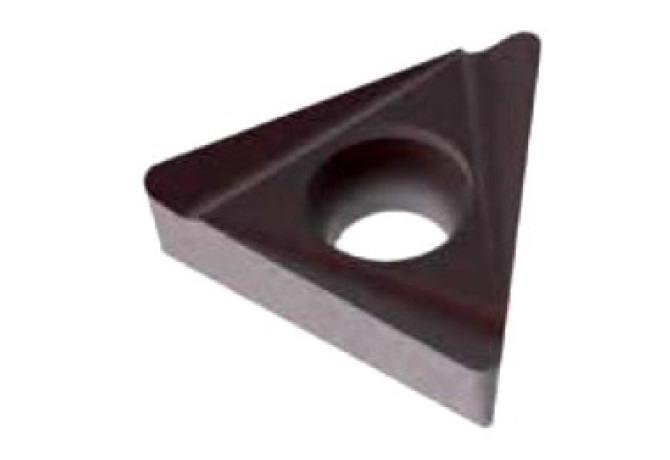

Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TCHT090204E02X-1R-HU615

TCHT090204E02X-1R-HU615

Артикул: TCHT090204E02X-1R-HU615

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

MP - Mapal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/1/2013

DIN

TC0902 3N

EPSR Insert included angle

60 Degree

FamilyProducts

Radial indexable insert TCHT, Single cutting edge

GAN Insert rake angle

15 Degree

GRDMFG Grade manufacturers designation

HU615

IC Inscribed circle diameter

5.56 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC0902 3N

Materials

Name Identifying order number

TCHT090204E02X-1R-HU615

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TCHT090204X

STDDESAnsi Standard designation ANSI

TCHT1.81.51X

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

B - Drilling,BAB - Open by boring,BVB - Drilling,FEC - Square shoulder milling,FPL - Face milling
