Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TCHT06T104E02R-2L-HP455

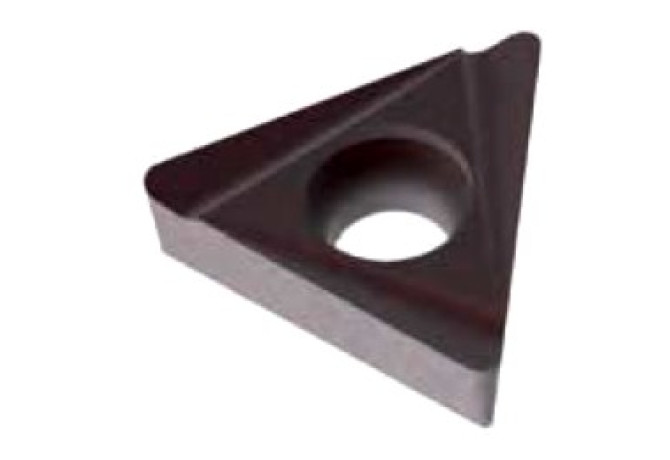

TCHT06T104E02R-2L-HP455

Артикул: TCHT06T104E02R-2L-HP455

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

AlTiN

COMPC Company code

MP - Mapal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/1/2013

DIN

TC06T1043R

EPSR Insert included angle

60 Degree

FamilyProducts

Radial indexable insert TCHT, 3 cutting edges

GAN Insert rake angle

10 Degree

GRDMFG Grade manufacturers designation

HP455

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC06T1043R

Materials

Name Identifying order number

TCHT06T104E02R-2L-HP455

RE Corner radius

0.4 mm

S Insert thickness

1.98 mm

S1 Insert thickness total

1.98 mm

STDDES Standard designation

TCHT06T104R

STDDESAnsi Standard designation ANSI

TCHT1.21.21R

TCINS Tolerance class insert

Working process

B - Drilling,BAB - Open by boring,BVB - Drilling,FEC - Square shoulder milling,FPL - Face milling
