Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TCGT16T304N.HS PD70

TCGT16T304N.HS PD70

Артикул: TCGT16T304NHSPD70

В наличии

В корзину

Описание

Характеристики

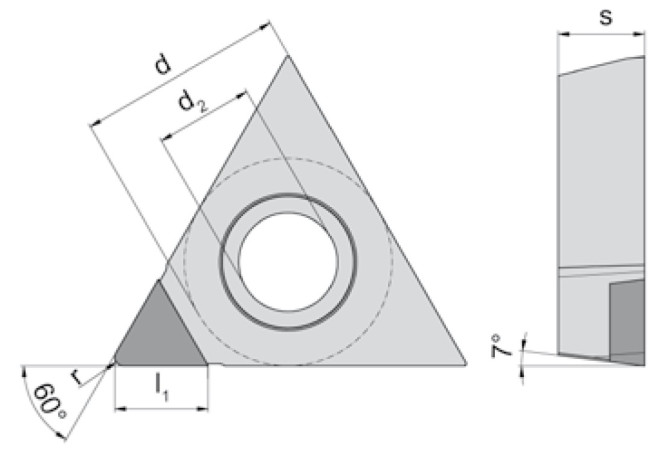

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

HORN - Paul Horn

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

2/6/2015

DIN

TC16T3043N

EPSR Insert included angle

60 Degree

FamilyProducts

TCGT Diamond tipped

GAN Insert rake angle

30 Degree

GRDMFG Grade manufacturers designation

PD70

IC Inscribed circle diameter

9.525 mm

ID Technical product number

TCGT16T304NHSPD70

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

LE Cutting edge effective length

3.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3043N

Name Identifying order number

TCGT16T304N.HS PD70

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TCGT16T304

STDDESAnsi Standard designation ANSI

TCGT32.51

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
