Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TCGT090204-MP4 WPP10S

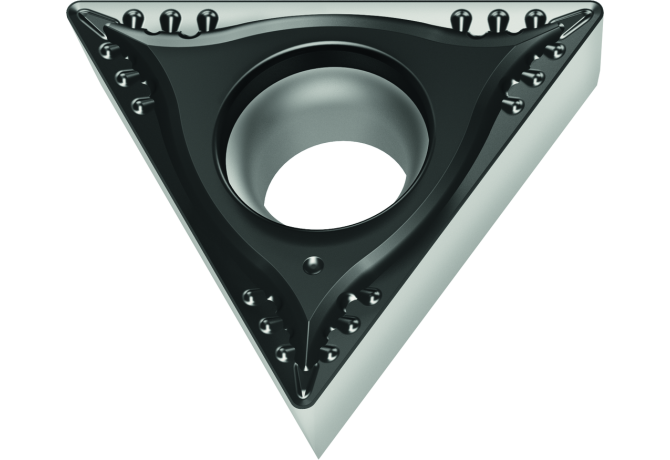

TCGT090204-MP4 WPP10S

TCGT090204-MP4 WPP10S TCGT090204-MP4 WPP10S TCGT090204-MP4 WPP10S

TCGT090204-MP4 WPP10S

Walter
Артикул: 6357833
В наличии
В корзину
Описание
Характеристики

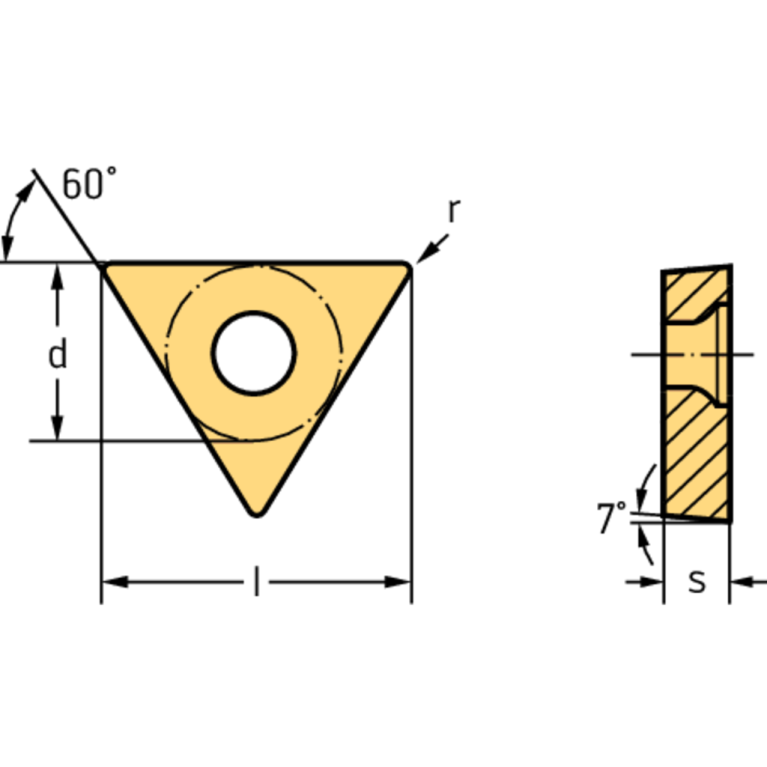

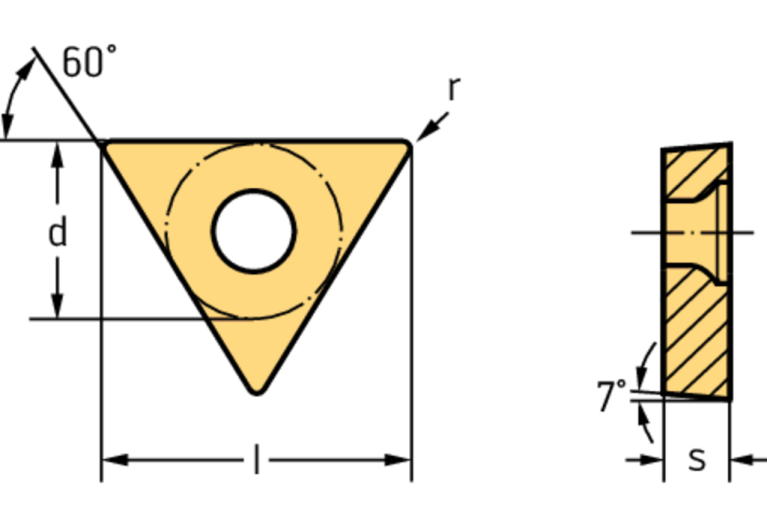

AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
MP4
CECC Cutting edge condition code
E - Rounded
COATN Coating / Покрытие
TiCN+Al2O3+(TiCN)
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
2.5 mm
Delivery state valid from
12/1/2023
DIN
TC0902043N
EPSR Insert included angle
60 Degree
FamilyProducts
Positive triangular 60° TCGT
GRDMFG Grade manufacturers designation
WPP10S
IC Inscribed circle diameter
5.55625 mm
ID Technical product number
6357833
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$TC0902043NB$$04
ISYC Subclass
201-01 - Triangle insert
L Cutting edge length
9.624 mm
LOC-03 ISO
ISO$TC0902043NB$$04
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TC0902043N
MIID Master insert identification
TCGT090204 WPP10S
Name Identifying order number
TCGT090204-MP4 WPP10S
NameAnsi Identifying order number inch alternative
TCGT1.8(1.5)1-MP4 WPP10S
NOI Insert index count
3
RE Corner radius
0.4 mm
S Insert thickness
2.38125 mm
S1 Insert thickness total
2.38125 mm
STDDES Standard designation
TCGT090204
STDDESAnsi Standard designation ANSI
TCGT1.81.51
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
G
Working process
No working processes available
WT Weight of item
0.001 kg
