Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TCGT080201FL-J08 NS530

TCGT080201FL-J08 NS530

Артикул: TCGT080201FL-J08 NS530

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

J08

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.2 mm

Delivery state valid from

8/24/2006

DIN

TC0802 3L

EPSR Insert included angle

60 Degree

FamilyProducts

J-series insert (positive), -J** chipbreaker

GRDMFG Grade manufacturers designation

NS530

GRDPRIO Standard designation of the grade main application

HT-P15

IC Inscribed circle diameter

4.76 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC0802 3L

Materials

Name Identifying order number

TCGT080201FL-J08 NS530

RE Corner radius

0.1 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TCGT080201

TCINS Tolerance class insert

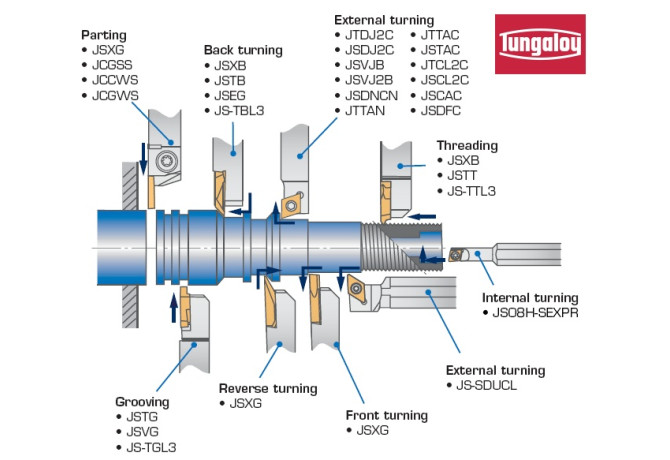

Working process

DDA - External turning,DDI - Internal turning
