TCGT060102R-F UTi20T

Артикул: TCGT060102R-F UTi20T

В наличии

В корзину

Описание

Характеристики

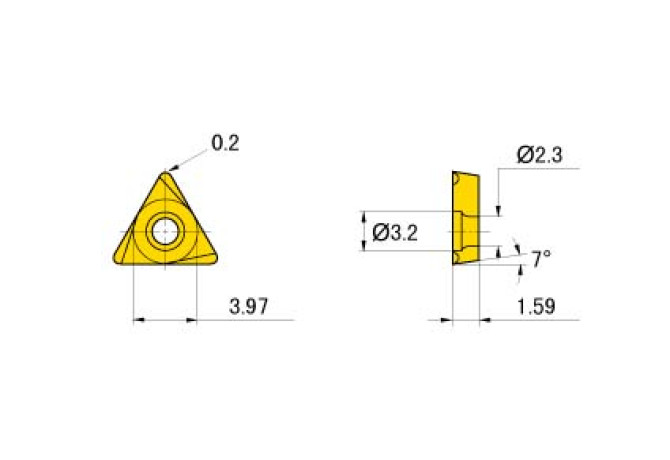

AN Clearance angle major

7 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.3 mm

Delivery state valid from

4/1/2022

DIN

TC0601023R

EPSR Insert included angle

60 Degree

FamilyProducts

INSERT, TURNING, UNCOATED

GAN Insert rake angle

17 Degree

GRD2ND Standard designation of the grade 2nd application

HW-P20-P30

GRD3RD Standard designation of the grade 3rd application

HW-K20-K30

GRDMFG Grade manufacturers designation

UTi20T

GRDPRIO Standard designation of the grade main application

HW-M20-M30

IC Inscribed circle diameter

3.97 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

6.87 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC0601023R

Materials

P,M,K,H

Name Identifying order number

TCGT060102R-F UTi20T

RE Corner radius

0.2 mm

S Insert thickness

1.59 mm

S1 Insert thickness total

1.59 mm

STDDES Standard designation

TCGT060102R

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
