Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TCGT 110202 SA TT5080

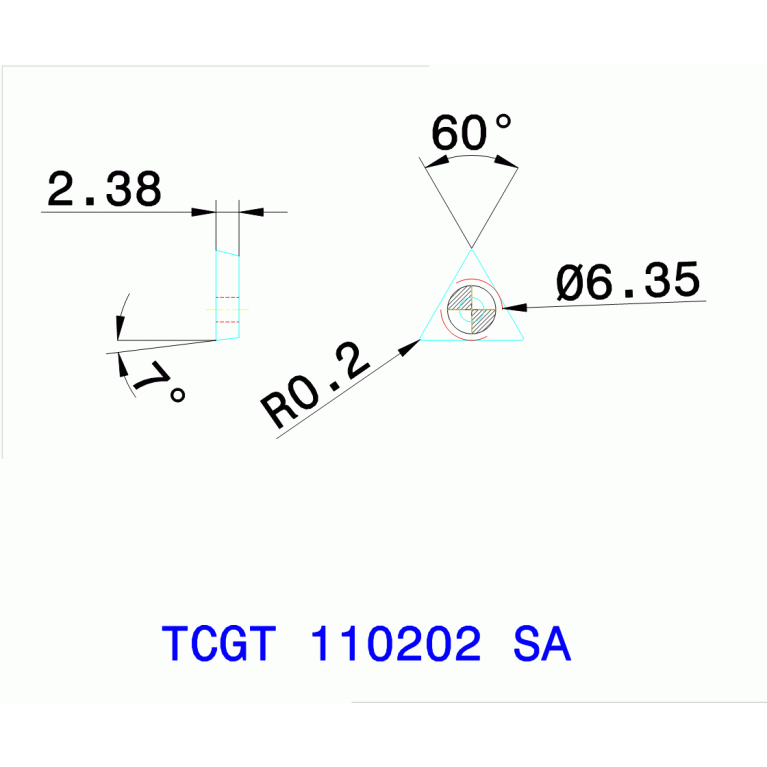

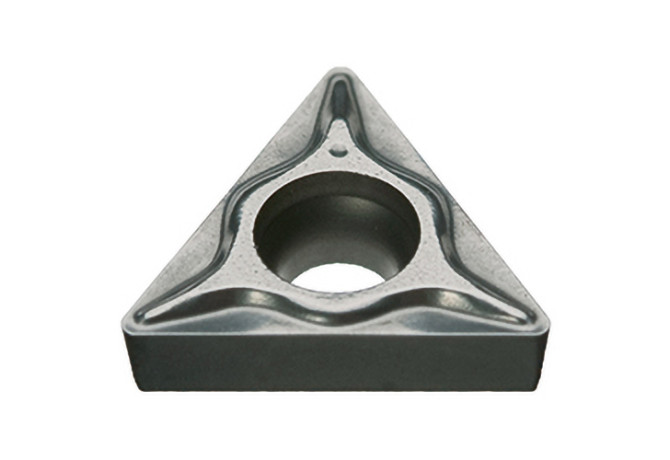

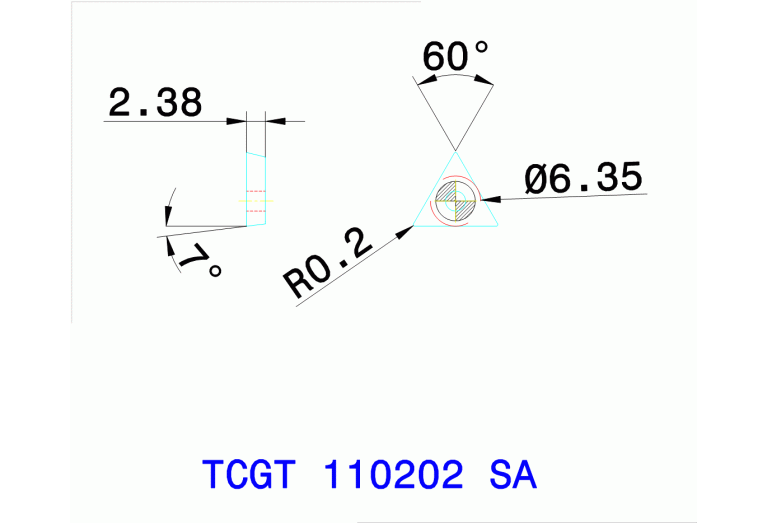

TCGT 110202 SA TT5080

Артикул: 5523214

В наличии

В корзину

Описание

Характеристики

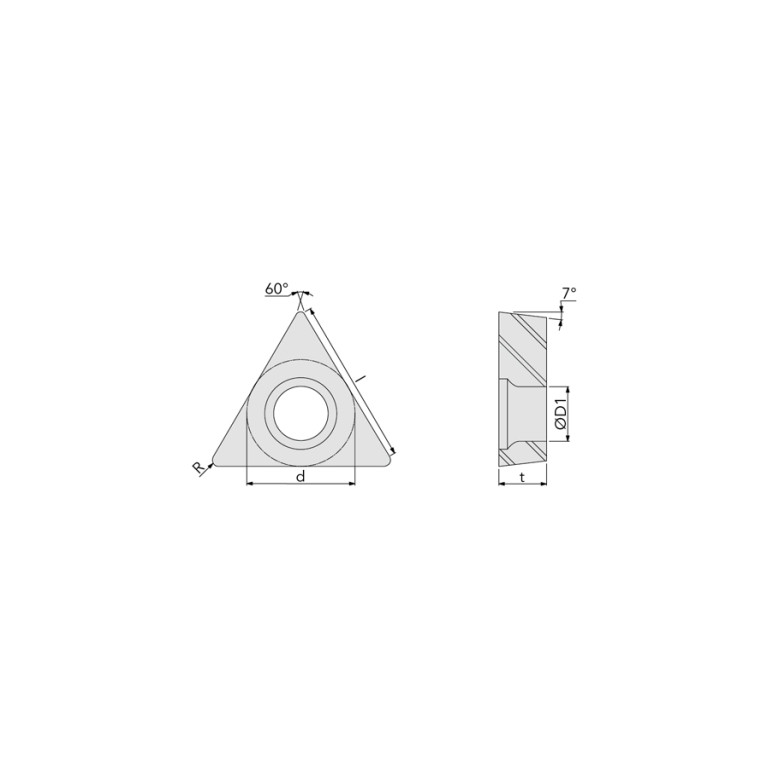

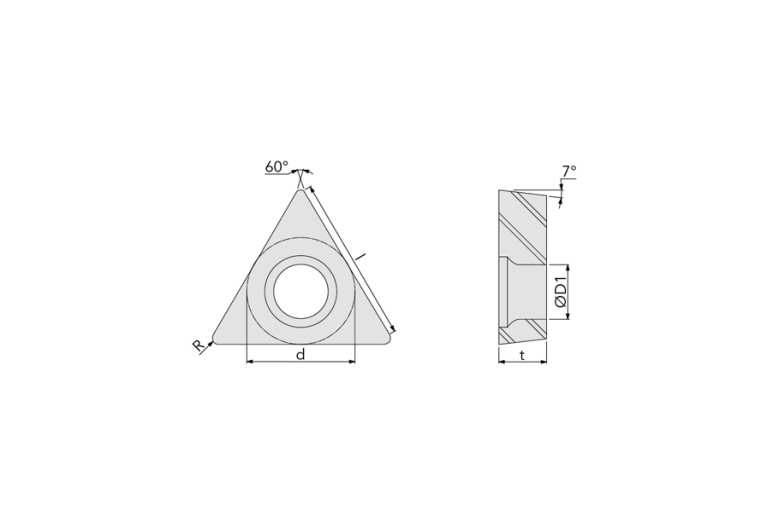

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiAlN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

2.8 mm

Delivery state

LL - Stock limited

DIN

TC1102023N

EPSR Insert included angle

60 Degree

FamilyProducts

insert, Positive 60° Insert - 7° clearance (peripheral grinded) for finishing

GRD2ND Standard designation of the grade 2nd application

M05-M25

GRD3RD Standard designation of the grade 3rd application

S05-S25

GRDMFG Grade manufacturers designation

TT5080

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5523214

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

10.5 mm

LE Cutting edge effective length

1.3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC1102023N

MIID Master insert identification

TCGT110202 TT5080

Name Identifying order number

TCGT 110202 SA TT5080

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TCGT110202

TCINS Tolerance class insert

Working process

No working processes available
