Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TCGT 110201 SA TT9020

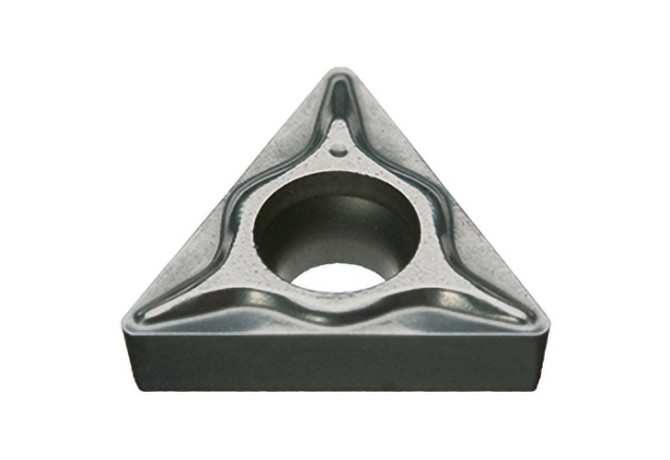

TCGT 110201 SA TT9020

Артикул: 5522930

В наличии

В корзину

Описание

Характеристики

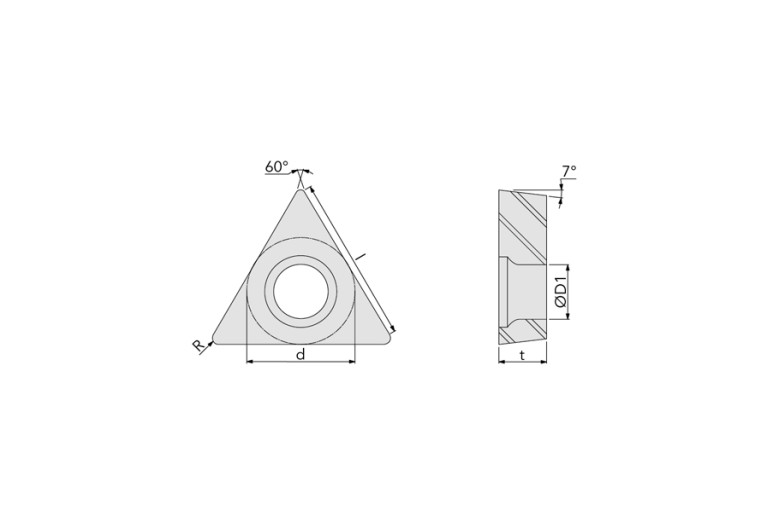

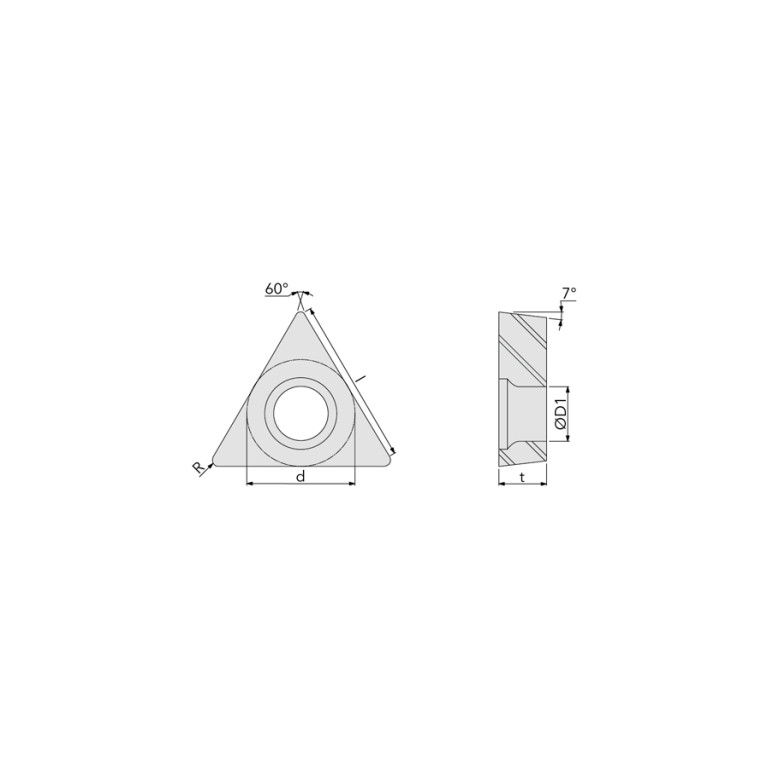

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

2.8 mm

Delivery state

LL - Stock limited

DIN

TC1102013N

EPSR Insert included angle

60 Degree

FamilyProducts

insert, Positive 60° Insert - 7° clearance (peripheral grinded) for finishing

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRDMFG Grade manufacturers designation

TT9020

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5522930

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

10.7 mm

LE Cutting edge effective length

1.3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC1102013N

MIID Master insert identification

TCGT110201 TT9020

Name Identifying order number

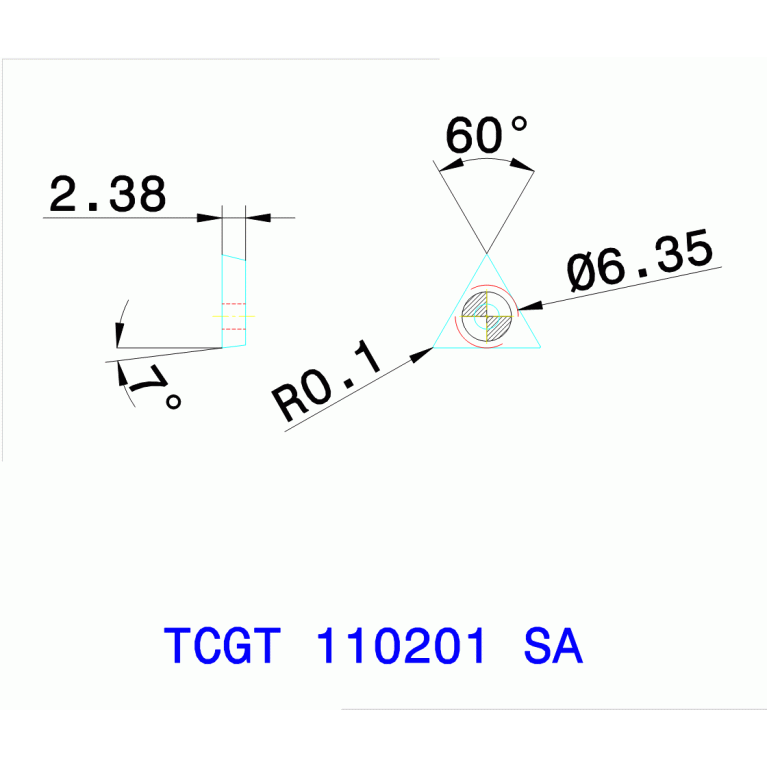

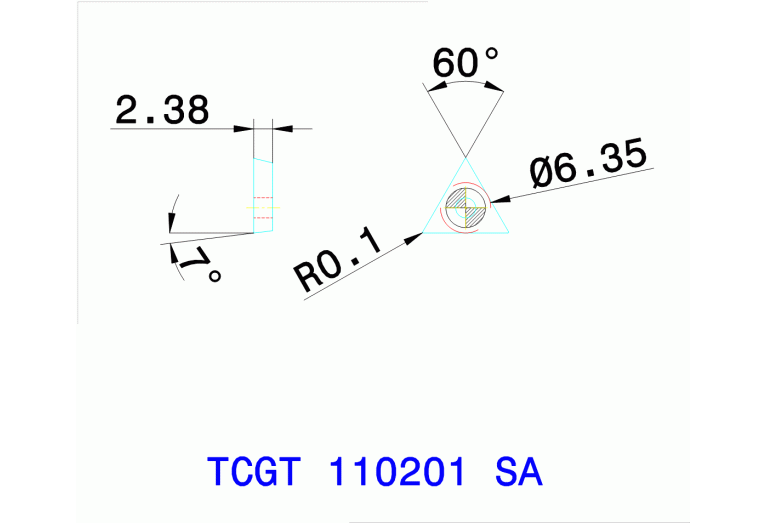

TCGT 110201 SA TT9020

RE Corner radius

0.1 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TCGT110201

TCINS Tolerance class insert

Working process

No working processes available
