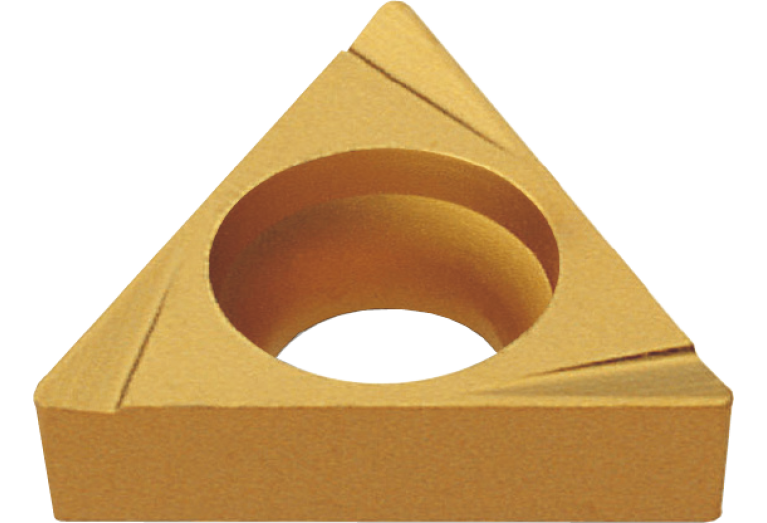

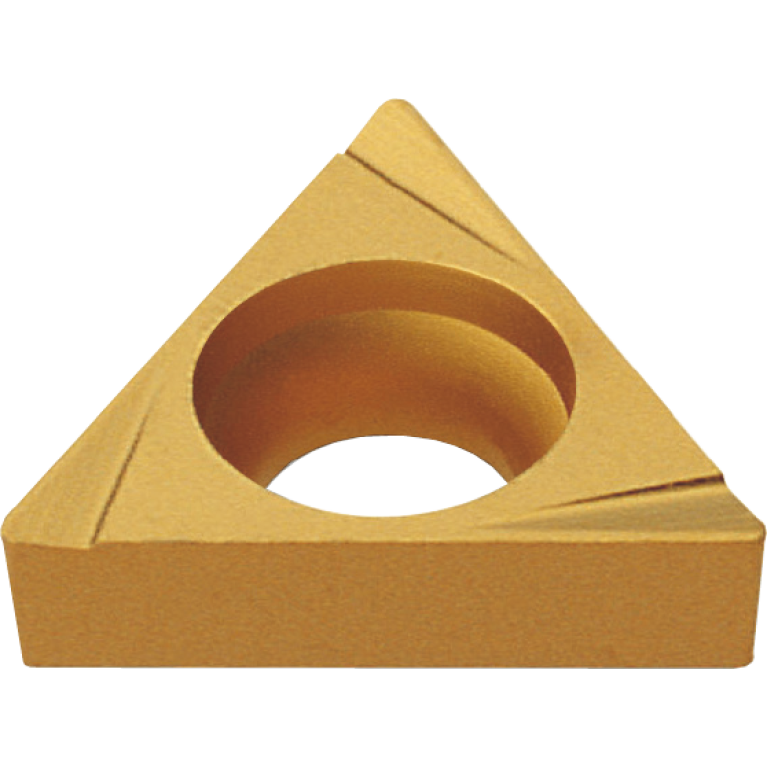

Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TBGT060104L H01

TBGT060104L H01

Артикул: 1-03-017308

В наличии

В корзину

Описание

Характеристики

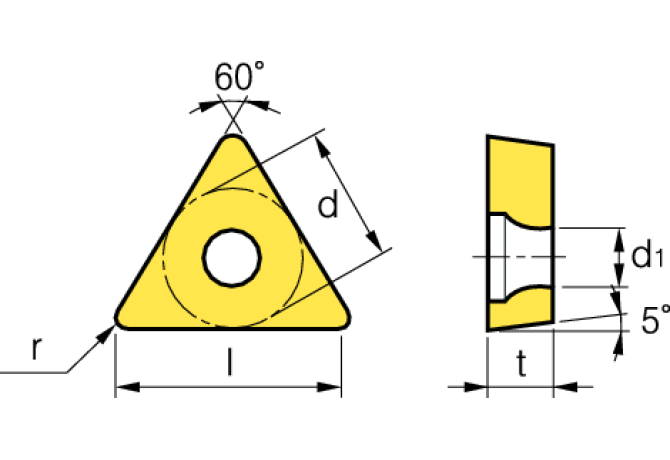

AN Clearance angle major

5 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.16 mm

Delivery state valid from

6/4/2014

DIN

TB0601 3L

EPSR Insert included angle

60 Degree

FamilyProducts

Turning Insert (Positive)

GRDMFG Grade manufacturers designation

H01

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

3.97 mm

ID Technical product number

1-03-017308

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

6.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TB0601 3L

Name Identifying order number

TBGT060104L H01

RE Corner radius

0.4 mm

S Insert thickness

1.59 mm

S1 Insert thickness total

1.59 mm

STDDES Standard designation

TBGT060104L

STDDESAnsi Standard designation ANSI

TBGT1.211L

TCINS Tolerance class insert

Working process

No working processes available
