Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TBGT 060104 L-FF CT3000

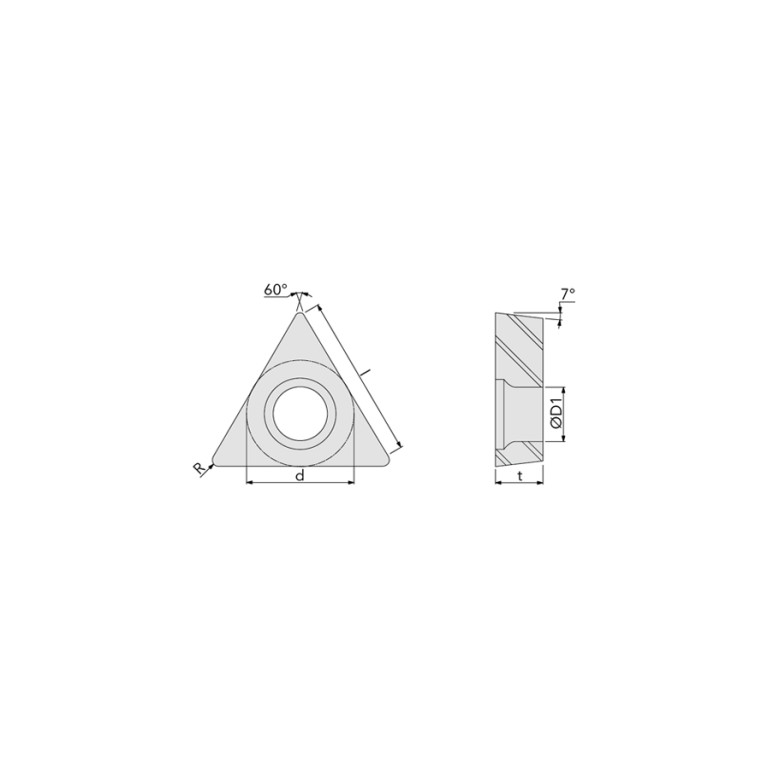

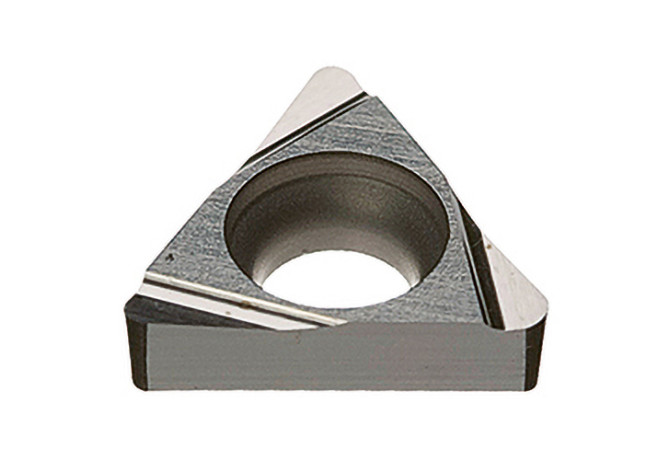

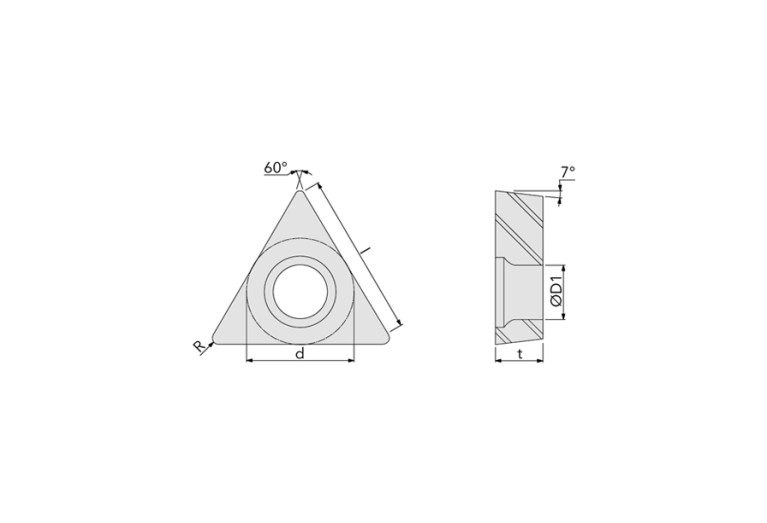

TBGT 060104 L-FF CT3000

Артикул: 5750089

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

5 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

TB0601043L

EPSR Insert included angle

60 Degree

FamilyProducts

insert, Positive 60° Insert - 5° clearance (peripheral grinded) for finishing

GRD2ND Standard designation of the grade 2nd application

M10-M20

GRD3RD Standard designation of the grade 3rd application

K10-K20

GRDMFG Grade manufacturers designation

CT3000

GRDPRIO Standard designation of the grade main application

P10-P20

IC Inscribed circle diameter

3.962 mm

ID Technical product number

5750089

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

5.9 mm

LE Cutting edge effective length

0.25 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TB0601043L

Name Identifying order number

TBGT 060104 L-FF CT3000

RE Corner radius

0.4 mm

S Insert thickness

1.59 mm

S1 Insert thickness total

1.59 mm

STDDES Standard designation

TBGT060104L

STDDESAnsi Standard designation ANSI

TBGT1.211L

TCINS Tolerance class insert

Working process

No working processes available
