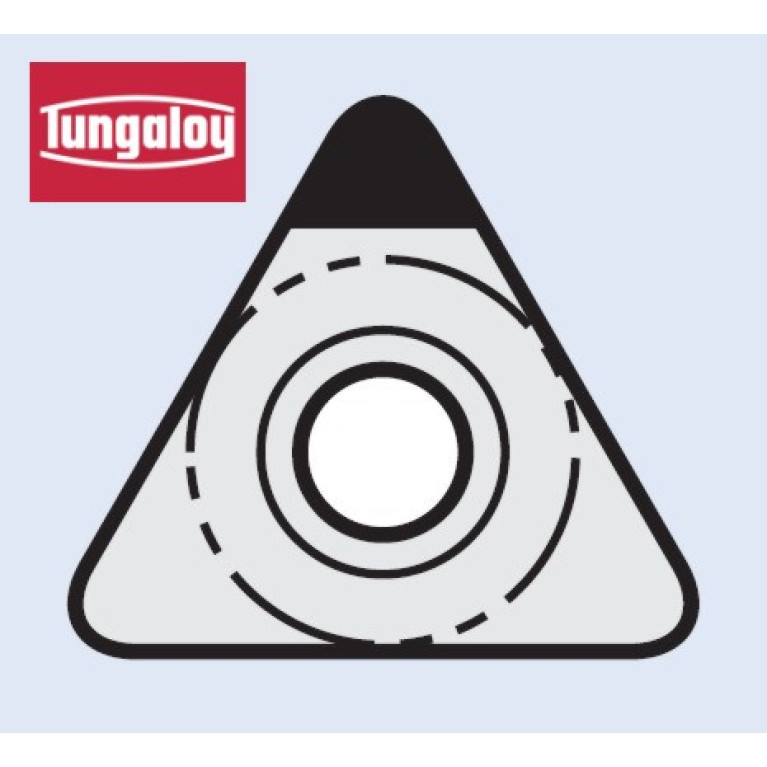

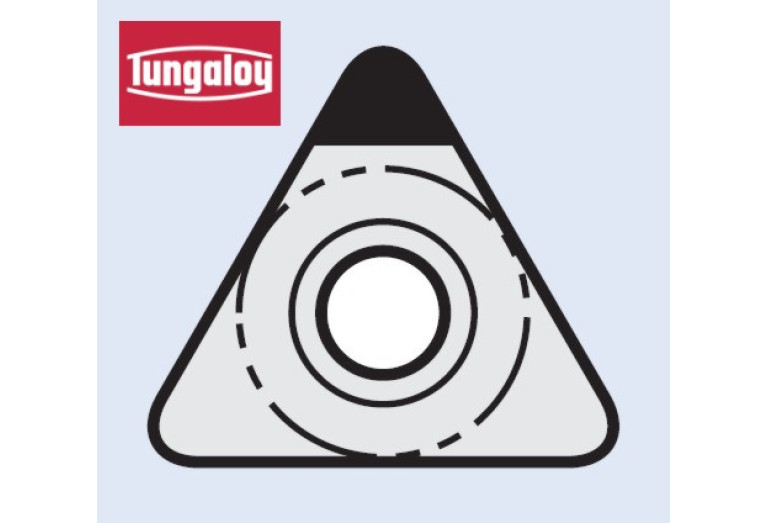

Главная Каталог продукции Toolunited 16 201-01 - Triangle insert Q-TPMW130302 T7010

Q-TPMW130302 T7010

Артикул: Q-TPMW130302 T7010

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

CVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/24/2006

DIN

TP1303 3N

EPSR Insert included angle

60 Degree

FamilyProducts

indexable insert, single cutting edge, positive

GRDMFG Grade manufacturers designation

T7010

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

7.94 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

13.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1303 3N

Name Identifying order number

Q-TPMW130302 T7010

RE Corner radius

0.2 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TPMW130302

TCINS Tolerance class insert

Working process

DDA - External turning
