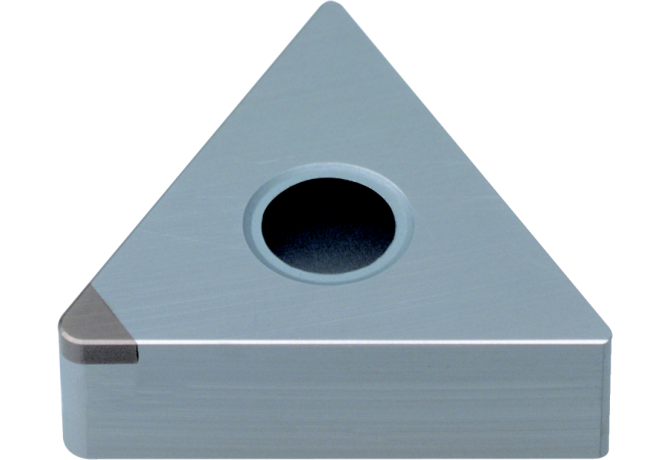

NU-TNGA160404 KB330

Артикул: 6-01-028667

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

6/5/2014

DIN

TN1604 2N

EPSR Insert included angle

60 Degree

FamilyProducts

CBN One-Use Type (Negative)

GRDMFG Grade manufacturers designation

KB330

GRDPRIO Standard designation of the grade main application

CBN

IC Inscribed circle diameter

9.525 mm

ID Technical product number

6-01-028667

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LE Cutting edge effective length

2.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1604 2N

Name Identifying order number

NU-TNGA160404 KB330

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TNGA160404

STDDESAnsi Standard designation ANSI

TNGA331

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

DDA - External turning
