Главная Каталог продукции Toolunited 16 201-01 - Triangle insert NU-TNGA110304 KB320

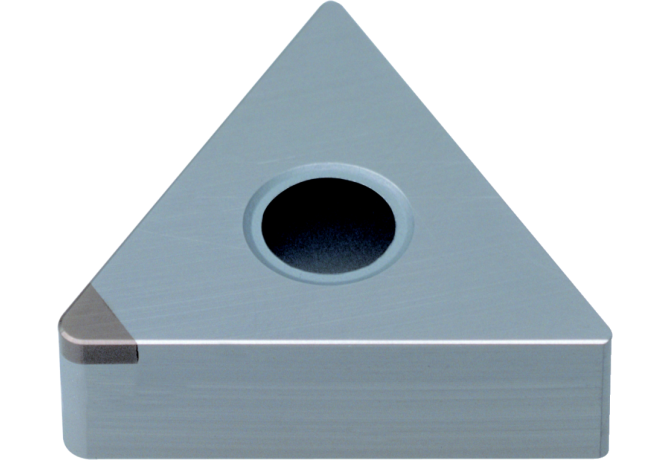

NU-TNGA110304 KB320

Артикул: 6-01-021584

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

TN1103 3N

EPSR Insert included angle

60 Degree

FamilyProducts

CBN One-Use Type (Negative)

GRDMFG Grade manufacturers designation

KB320

GRDPRIO Standard designation of the grade main application

CBN

IC Inscribed circle diameter

6.35 mm

ID Technical product number

6-01-021584

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1103 3N

Name Identifying order number

NU-TNGA110304 KB320

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TNGA110304

STDDESAnsi Standard designation ANSI

TNGA221

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
