Главная Каталог продукции Toolunited 16 201-01 - Triangle insert NP-TPGX110308GA3 MBC020

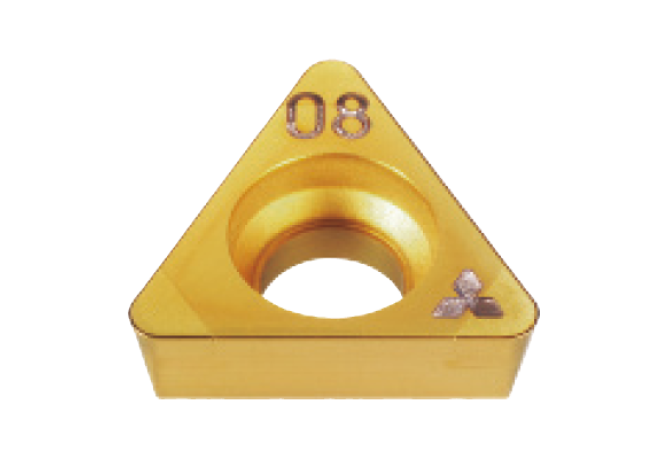

NP-TPGX110308GA3 MBC020

Артикул: 369060

В наличии

В корзину

Описание

Характеристики

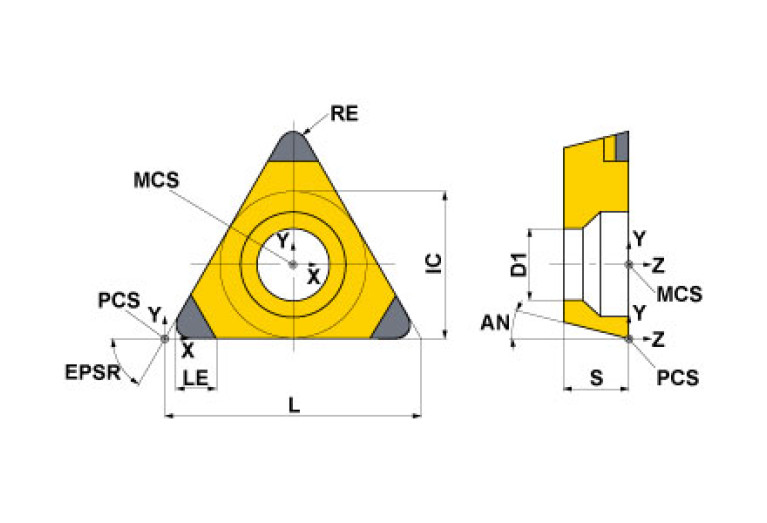

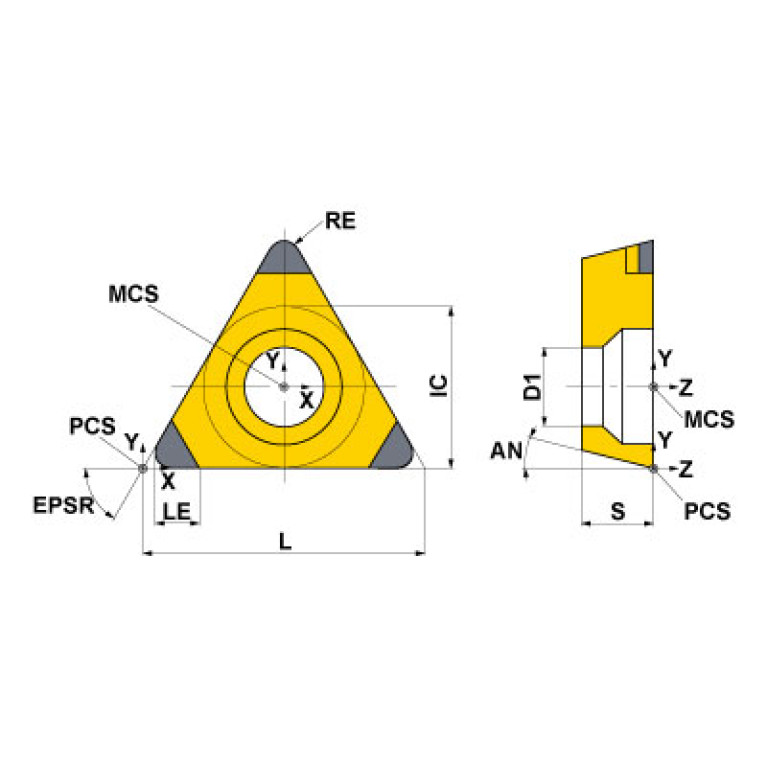

AN Clearance angle major

11 Degree

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

3.5 mm

Delivery state valid from

4/1/2022

DIN

TP1103084N

EPSR Insert included angle

60 Degree

FamilyProducts

insert for turning NP-TPGB-GA3

GRDMFG Grade manufacturers designation

MBC020

IC Inscribed circle diameter

6.35 mm

ID Technical product number

369060

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1103084N

Name Identifying order number

NP-TPGX110308GA3 MBC020

NameAnsi Identifying order number inch alternative

NP-TPGX222-GA3 MBC020

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TPGX110308GA3

STDDESAnsi Standard designation ANSI

NP-TPGX222-GA3

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
