Главная Каталог продукции Toolunited 16 201-01 - Triangle insert NP-TPGX090204G MB8025

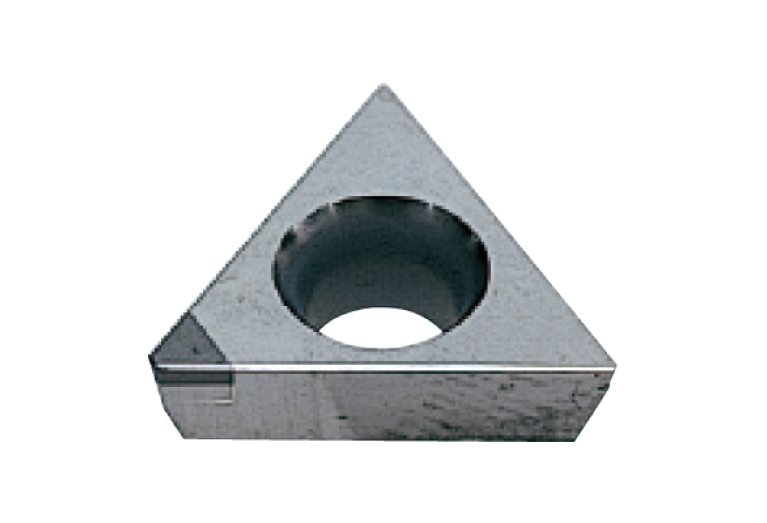

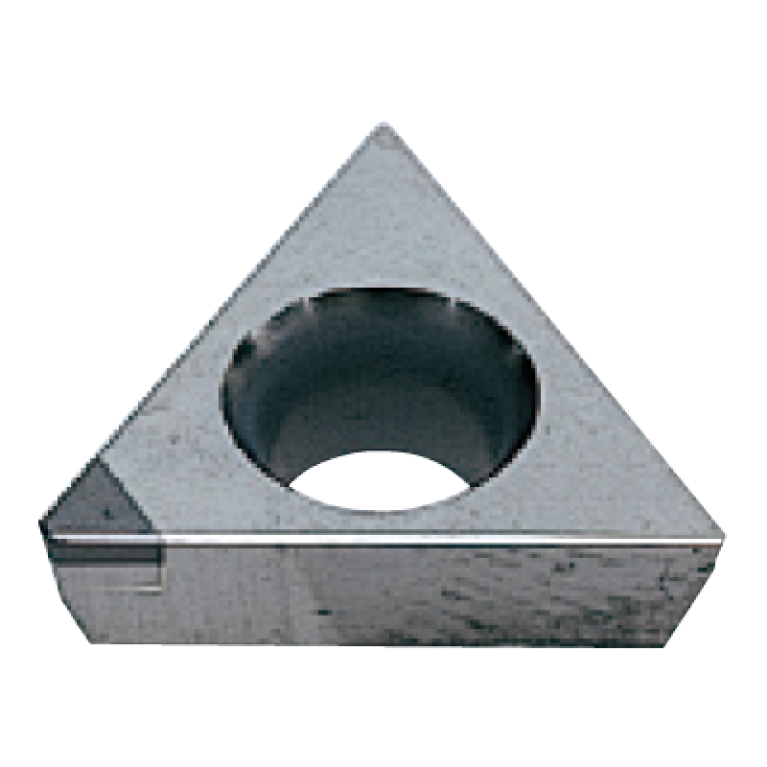

NP-TPGX090204G MB8025

Артикул: 296500

В наличии

В корзину

Описание

Характеристики

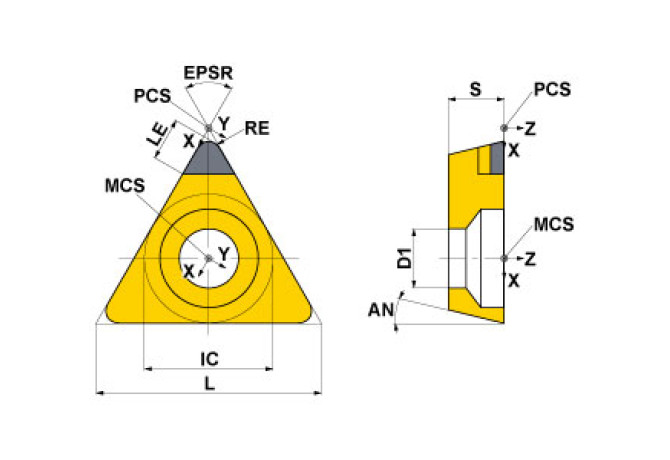

AN Clearance angle major

11 Degree

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

3 mm

Delivery state valid from

4/1/2022

DIN

TP0902044N

EPSR Insert included angle

60 Degree

FamilyProducts

insert for turning, positive, NP-TPGX-G

GRDMFG Grade manufacturers designation

MB8025

IC Inscribed circle diameter

5.56 mm

ID Technical product number

296500

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

9.63 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP0902044N

Name Identifying order number

NP-TPGX090204G MB8025

NameAnsi Identifying order number inch alternative

NP-TPGX1.81.51G MB8025

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TPGX090204G

STDDESAnsi Standard designation ANSI

NP-TPGX1.81.51G

TCINS Tolerance class insert

Working process

No working processes available
