NP-TNMA160408F MB810

NP-TNMA160408F MB810

Mitsubishi Materials
Артикул: 123132
В наличии
В корзину
Характеристики
AN Clearance angle major
0 Degree
AS Clearance angle wiper edge
0 Degree
CB Chip breaker face count
0 - Without chip breaker
COMPC Company code
MI - Mitsubishi Materials
CSP Coolant supply property
0 - Without coolant supply

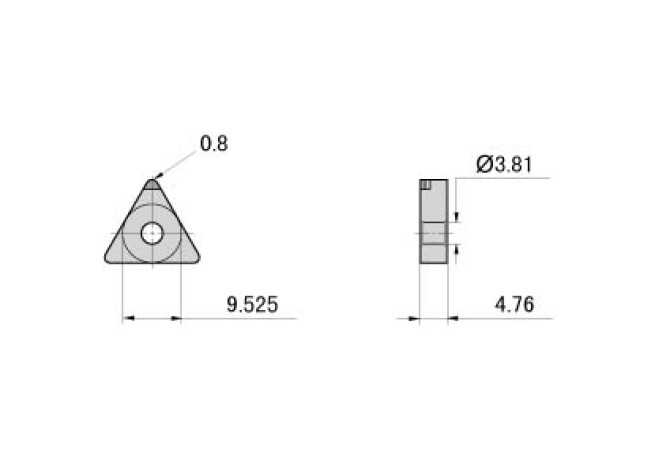

D1 Fixing hole diameter
3.81 mm
Delivery state valid from
4/1/2022
DIN
TN1604082N
EPSR Insert included angle
60 Degree
FamilyProducts
INSERT, TURNING, CBN
GAN Insert rake angle
0 Degree
GRDMFG Grade manufacturers designation
MB810
IC Inscribed circle diameter
9.525 mm
ID Technical product number
123132
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-01 - Triangle insert
L Cutting edge length
16.49 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TN1604082N
Materials
H
Name Identifying order number
NP-TNMA160408F MB810
NameAnsi Identifying order number inch alternative
NP-TNMA332F MB810
RE Corner radius
0.8 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
TNMA160408
STDDESAnsi Standard designation ANSI
NP-TNMA332F
TCINS Tolerance class insert
M
Working process
BAB - Open by boring,DDA - External turning,DDI - Internal turning,DFA - External form turning
