Главная Каталог продукции Toolunited 16 201-01 - Triangle insert 3QP-TPMW16T304 BX360

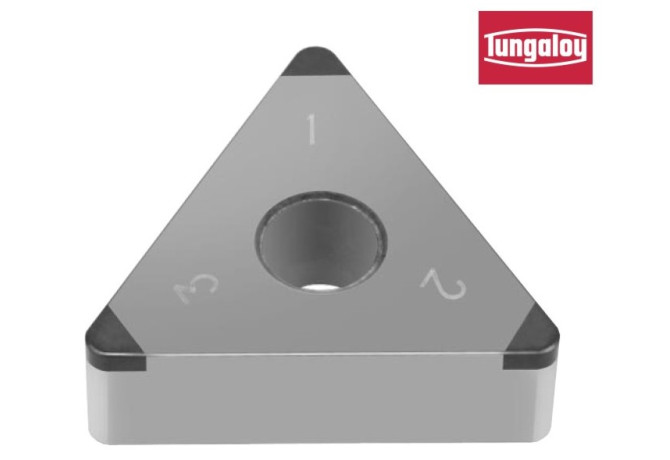

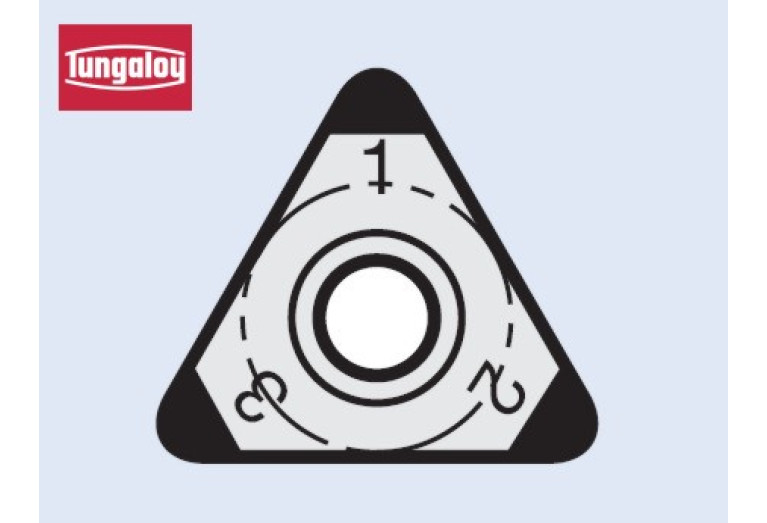

3QP-TPMW16T304 BX360

Артикул: 6818103

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

3QP

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

8/24/2006

DIN

TP16T3 3N

EPSR Insert included angle

60 Degree

FamilyProducts

indexable insert, multiple cutting edge, positive

GRDMFG Grade manufacturers designation

BX360

GRDPRIO Standard designation of the grade main application

BN-P01

IC Inscribed circle diameter

9.525 mm

ID Technical product number

6818103

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP16T3 3N

Name Identifying order number

3QP-TPMW16T304 BX360

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TPMW16T304

STDDESAnsi Standard designation ANSI

TPMW32.51

TCINS Tolerance class insert

Working process

No working processes available
