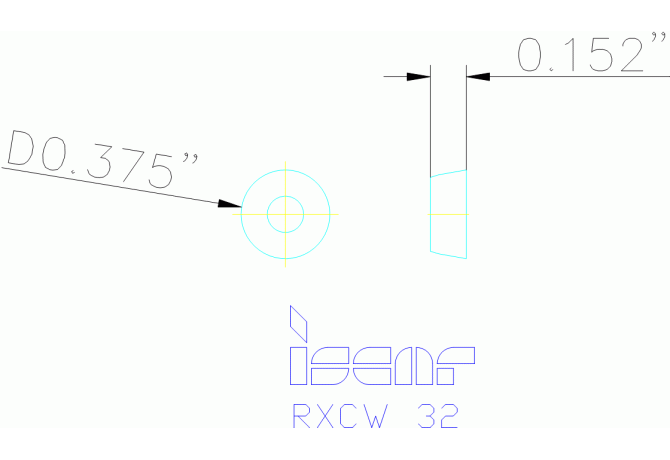

RXCW 32 IC328

Артикул: 5602212

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

IS-RX32 3N

FamilyProducts

RXCW 32 IC328

GRDMFG Grade manufacturers designation

IC328

IC Inscribed circle diameter

9.53 mm

ID Technical product number

5602212

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-RX32 3N

M M-dimension

9.53 mm

Name Identifying order number

RXCW 32 IC328

S Insert thickness

3.86 mm

S1 Insert thickness total

3.86 mm

TCINS Tolerance class insert

Working process

No working processes available
