Главная Каталог продукции Toolunited 16 201-10 - Round insert RXCW 0702 IC908

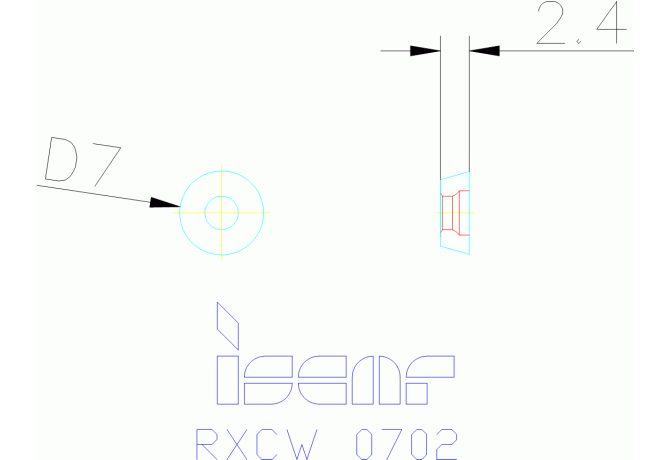

RXCW 0702 IC908

Артикул: 5602349

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-28863294306930

FamilyProducts

Precision Ground Flat Rake Round Milling Inserts

GRDMFG Grade manufacturers designation

IC908

IC Inscribed circle diameter

7 mm

ID Technical product number

5602349

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$28863294306930

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

IS$$28863294306930

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-28863294306930

M M-dimension

7 mm

Name Identifying order number

RXCW 0702 IC908

S Insert thickness

2.4 mm

Working process

No working processes available
