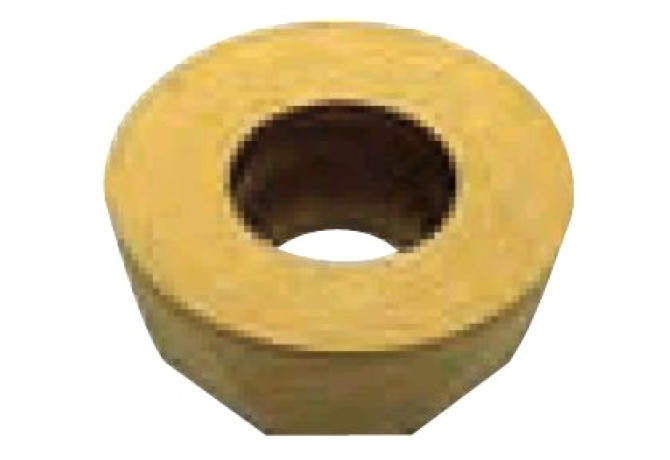

RPMW1204M0T AP25N

Артикул: RPMW1204M0T AP25N

В наличии

В корзину

Описание

Характеристики

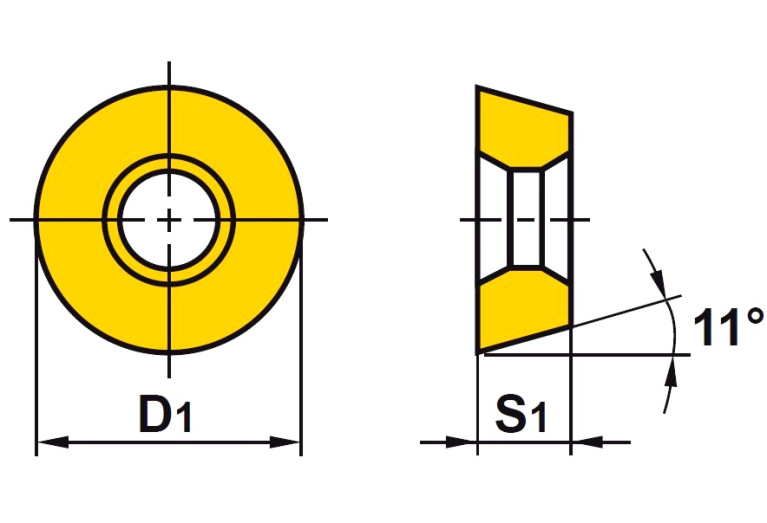

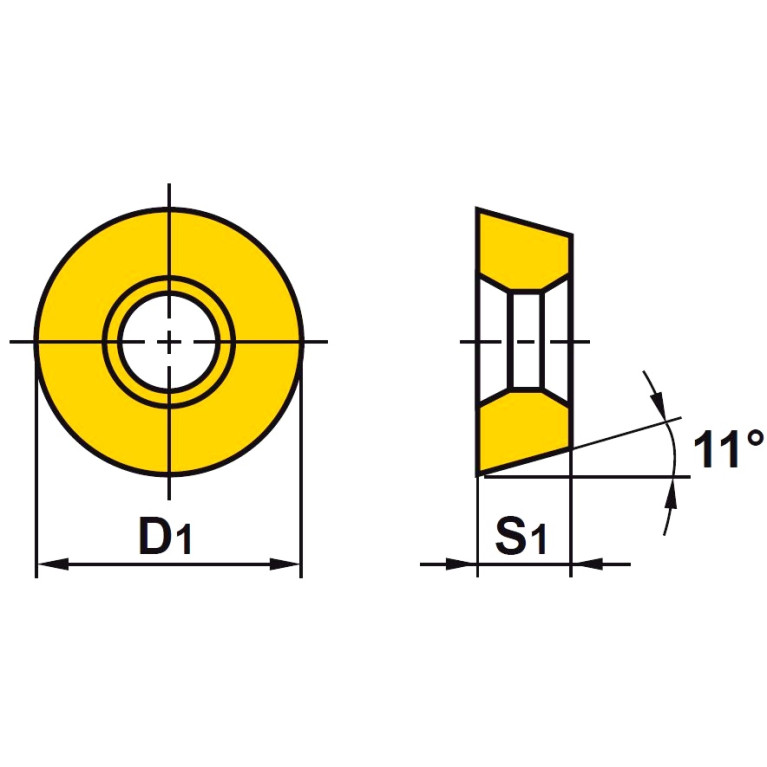

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

(Ti, Al)N

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

RP1204M03N

FamilyProducts

insert for milling RPMW

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

CC-K10

GRD3RD Standard designation of the grade 3rd application

CC-K20

GRDMFG Grade manufacturers designation

AP25N

GRDPRIO Standard designation of the grade main application

CC-P01

IC Inscribed circle diameter

12 mm

ID Technical product number

RPMW1204M0T AP25N

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RP1204M03N

M M-dimension

12 mm

Name Identifying order number

RPMW1204M0T AP25N

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

RPMW1204M0T

STDDESAnsi Standard designation ANSI

RPMW43VT

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.015 kg
