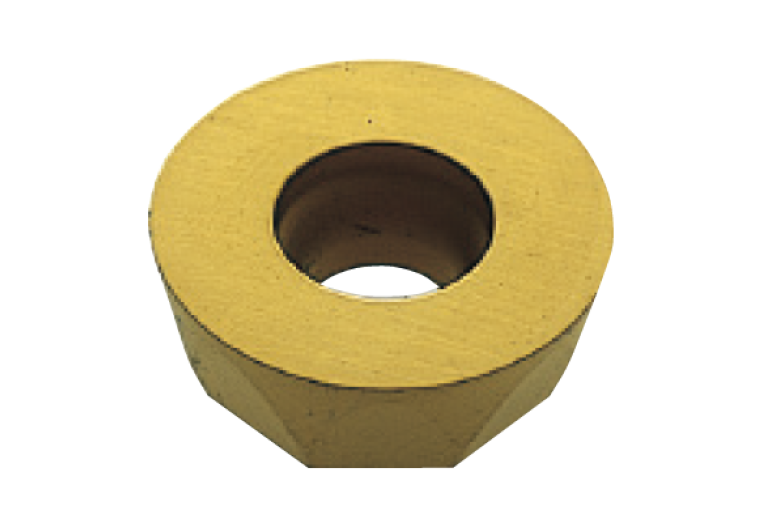

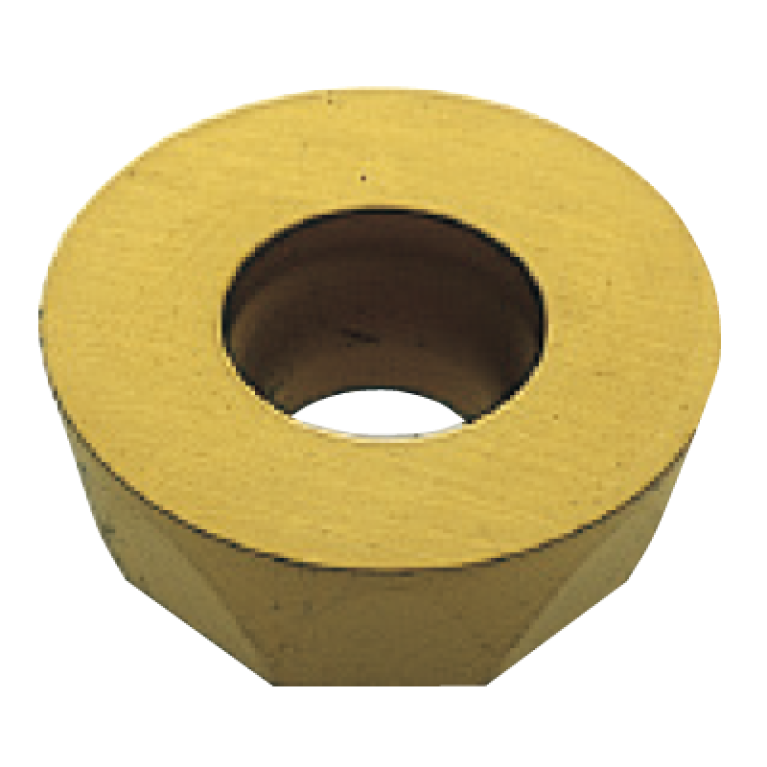

RPMW09T300E VP15TF

Артикул: 208207

В наличии

В корзину

Описание

Характеристики

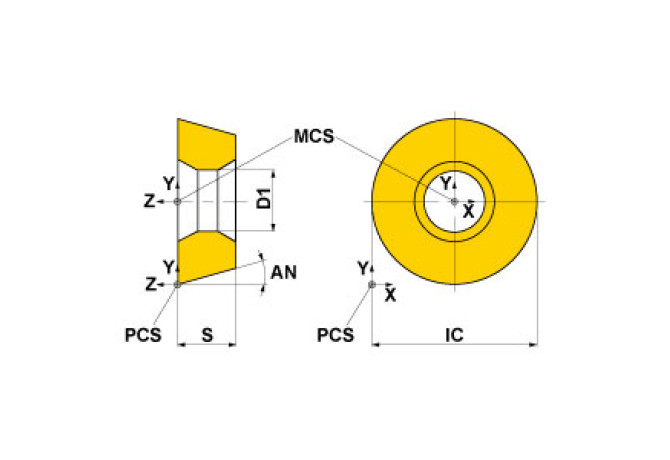

AN Clearance angle major

11 Degree

CECC Cutting edge condition code

E - Rounded

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

4/1/2022

DIN

RP09T3003N

FamilyProducts

insert for milling, RPMW-E

GRDMFG Grade manufacturers designation

VP15TF

IC Inscribed circle diameter

9.525 mm

ID Technical product number

208207

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RP09T3003N

M M-dimension

9.525 mm

Name Identifying order number

RPMW09T300E VP15TF

S Insert thickness

3.962 mm

S1 Insert thickness total

3.962 mm

STDDES Standard designation

RPMW09T300E

STDDESAnsi Standard designation ANSI

RPMW09T300E

TCINS Tolerance class insert

Working process

No working processes available
