RPMT1606EN-ML AH725

Артикул: 6987880

В наличии

В корзину

Описание

Характеристики

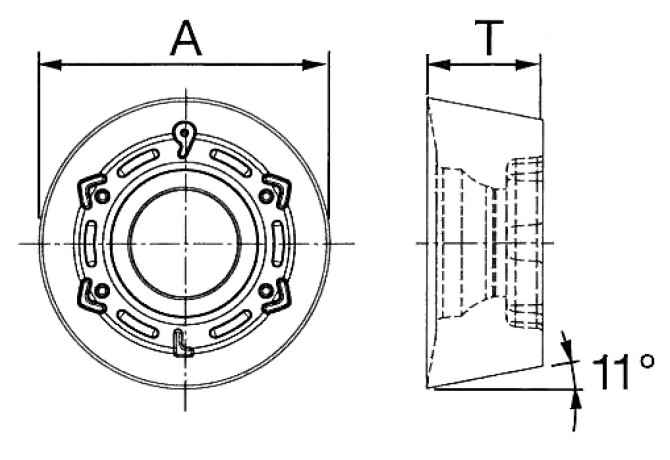

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

9/27/2013

DIN

RP1606EN3N

FamilyProducts

insert RPMT-ML for milling

GRDMFG Grade manufacturers designation

AH725

IC Inscribed circle diameter

16 mm

ID Technical product number

6987880

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RP1606EN3N

M M-dimension

16 mm

Materials

P,K

Name Identifying order number

RPMT1606EN-ML AH725

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

RPMT1606EN

TCINS Tolerance class insert

Working process

FFO - Die milling,FPL - Face milling
