Главная Каталог продукции Toolunited 16 201-10 - Round insert RNMG250600-B25 NC3030

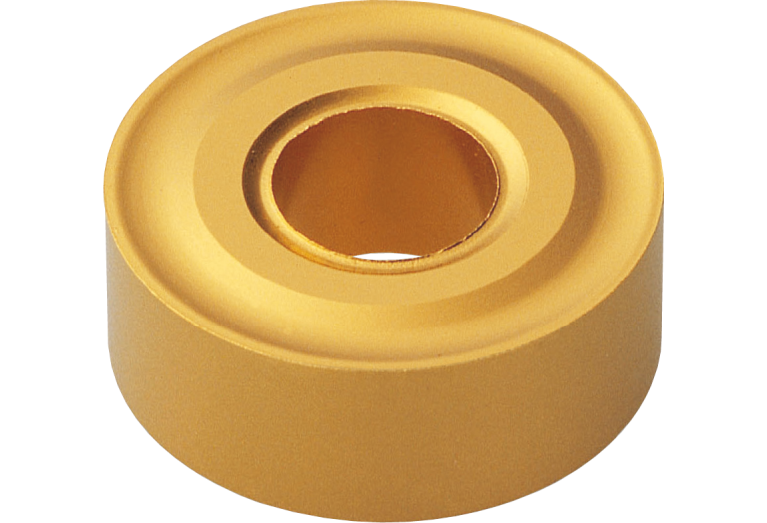

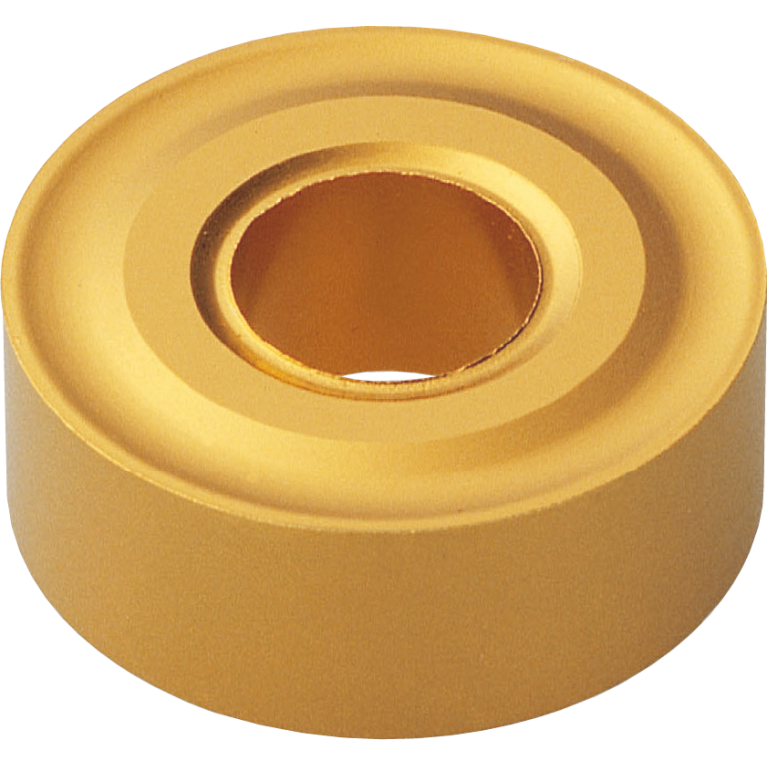

RNMG250600-B25 NC3030

Артикул: 1-02-038144

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

B25

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

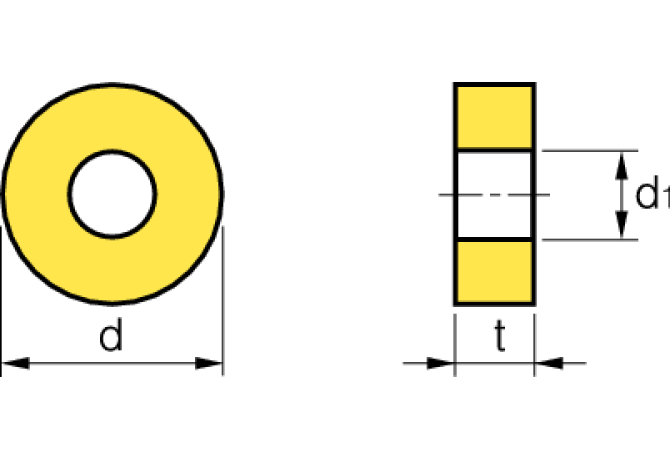

D1 Fixing hole diameter

9.12 mm

Delivery state valid from

6/4/2014

DIN

RN2506 2N

FamilyProducts

Turning Insert (Negative)

GRDMFG Grade manufacturers designation

NC3030

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

25.4 mm

ID Technical product number

1-02-038144

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RN2506 2N

M M-dimension

25.4 mm

Name Identifying order number

RNMG250600-B25 NC3030

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

RNMG250600

STDDESAnsi Standard designation ANSI

RNMG840

TCINS Tolerance class insert

Working process

No working processes available
