Главная Каталог продукции Toolunited 16 201-10 - Round insert RNMG 120400 IC8250

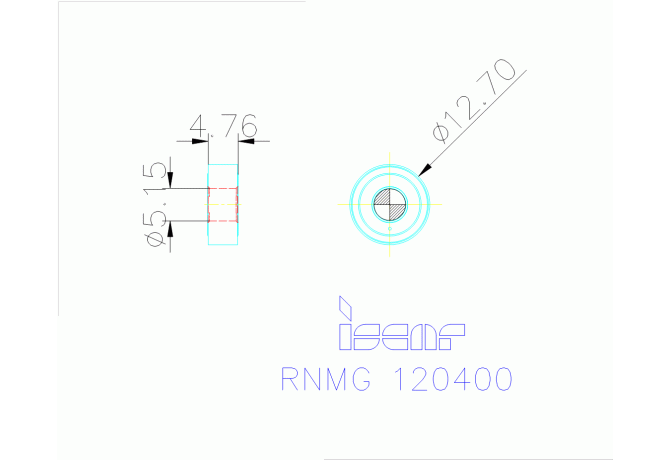

RNMG 120400 IC8250

Артикул: 5508825

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating / Покрытие

TiN-TiCN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.15 mm

Delivery state valid from

2/1/2012

DIN

RN1204002N

FamilyProducts

RNMG 120400 IC8250, RNMG, Axial Turning

GRD2ND Standard designation of the grade 2nd application

HC-P01

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

IC8250

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5508825

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RN1204002N

M M-dimension

12.7 mm

Materials

Name Identifying order number

RNMG 120400 IC8250

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

RNMG120400

STDDESAnsi Standard designation ANSI

RNMG430

TCINS Tolerance class insert

Working process

No working processes available
