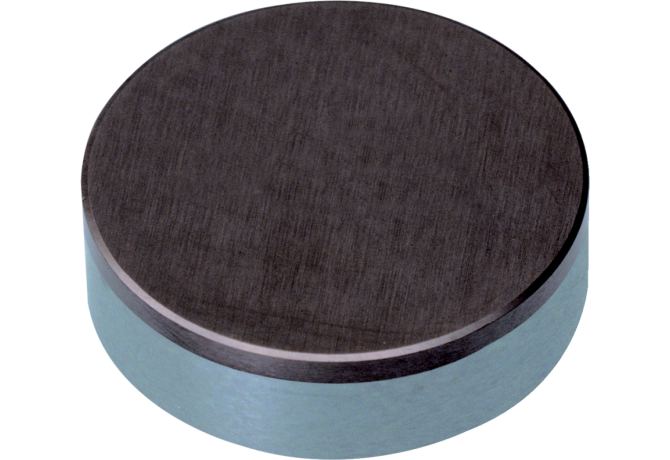

RNGN090300-B KB410

Артикул: 6-01-028791

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/5/2014

DIN

RN0903 1N

FamilyProducts

CBN Regrindable (Negative)

GRDMFG Grade manufacturers designation

KB410

GRDPRIO Standard designation of the grade main application

CBN

IC Inscribed circle diameter

9.525 mm

ID Technical product number

6-01-028791

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RN0903 1N

M M-dimension

9.525 mm

Name Identifying order number

RNGN090300-B KB410

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RNGN090300-B

STDDESAnsi Standard designation ANSI

RNGN320-B

TCINS Tolerance class insert

Working process

DDA - External turning
